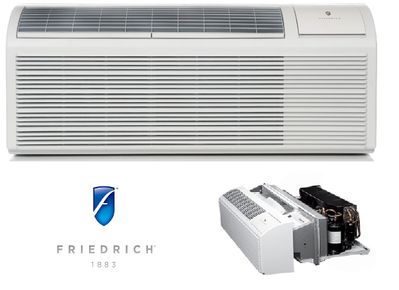

Friedrich PDH15R5SF 15,000 BTU PTAC Air Conditioner with Heat Pump and Backup Electric Heat, 265 Volt, Comes with Cord (20 Amp Breaker), EER Rating of 9.8, DiamondBlue Anti Corrosion Protection, Wall Sleeves Required for New Installations (Sold Seperately)

Friedrich PDH15R5SF 15,000 BTU PTAC Air Conditioner with Heat Pump and Backup Electric Heat, 265 Volt, Comes with Cord (20 Amp Breaker), EER Rating of 9.8, DiamondBlue Anti Corrosion Protection, Wall Sleeves Required for New Installations (Sold Seperately)

Friedrich Air Conditioning, a leading room air conditioner manufacturer for more than six decades, is proud to introduce a completely re-engineered PTAC for 2011. Frequently used in lodging, senior care, dormitories, military housing and some residential applications, PTACs are 42-inch-wide, through-the-wall air conditioners and heat pumps.

Because PTACs can be up to 50 percent shallower than other through-the-wall solutions, they install flush with exterior walls and use little interior floor space. And, the slide-out chassis design has maintenance benefits for facilities managers who need to keep rooms comfortable for their occupants. Replacement units can be installed and operating in as few as 10 to 15 minutes. No technical expertise is necessary.

Completely redesigned and re-engineered, this Friedrich PTAC also hits the mark with a feature set that delivers reliable operation and superior comfort.

Digital Temperature Readout: By digitally monitoring desired room temperature, the room is controlled more precisely than conventional systems. The large, easy-to-read LED display can show either the set point or actual room temperature as selected by owner.
One-Touch Operation: When the unit is powered off, the unit can be returned directly to heating or cooling mode by pressing the ‘Heat’ or ‘Cool’ buttons without the confusing power up sequence of some controls. One-touch control takes guesswork out of unit control, delivering a more enjoyable experience and eliminating front-desk calls.
Electronic Temperature Limiting: By limiting the operating range, the property can save energy by eliminating “max cool” or “max heat” situations common with older uncontrolled systems. The new electronic control allows owners to set operating ranges for both heating and cooling independently of one another.

Product Features
• Tangential blower wheel for fast, even air distribution
• Two permanently-lubricated fan motors for quiet operation
• EERs up to 12.0; COPs up to 3.4
• 3 fan speeds heating and cooling
• Separate thermostat settings (limiting) for cooling and heating modes allow for improved comfort
• Internal diagnostic program
• Remote thermostat operation
• Desk control ready
• Compatible with energy management systems
• Reversible indoor air louvers
• Antimicrobial air filters
• Diamonblue anticorrosion treatment
• Modular design ensures easy access to key components
• Fits standard PTAC sleeve without added cost of a baffle kit
• 5 Year limited warranty
• Constant room comfort monitoring “Instant Heat” heat pump mode quickly heats a room to the desired temperature for increased comfort
• Even heat monitoring checks room temperature and automatically adds heat boost if necessary
• Room freeze protection- heat initiated if temperature falls to 40°F in an unoccupied room, raising temperature to 46°F
• Dual motors for quiet operation
• Durable, powder coat paint finish
• Indoor coil frost sensor protects the compressor to lengthen the life of the unit.
• Random compressor restart protects electrical systems from overload when power is restored
• Separate heat and cool range limits
• Desk control ready allowing hotel owners to control units from a central location
• Electronic defrost control ensures more run time in the efficient heat pump mode
• Universal heaters with heat capacities determined by the power cord used with the unit
• Fresh air damper control to bring in fresh outside air when desired
• Washable, antimicrobial air filter
• Service error code memory storage
• Emergency heat override

Product Specifications
Performance Data:
• Cooling Capacity BTU: 14,500
• Power (Watts): 1,480
• EER Rating: 9.8
• Reverse Heating BTU: 13,300
• Power (Watts) Heat: 1,300
• COP: 3.0
• De-humidification: 3.2 Pints per hour
• Sensible Heat Ratio: 0.65

Electric Heat Data with 15 Amp Plug/COOLING ONLY-NO HEAT, THIS CORD CANNOT BE USED ON THIS MODEL

Electric Heat Data with 15 Amp Plug:
• Heater Watts: 2,000
• Voltage: 265
• Heating BTU: 6,824
• Heating Current Amps: 7.6
• Minimum Circuit Ampacity: 9.8
• Branch Circuit Fuse (Amps): 15

Electric Heat Data with 20 Amp Plug:
• Heater Watts: 3,000
• Voltage: 265
• Heating BTU: 10,236
• Heating Current Amps: 11.4
• Minimum Circuit Ampacity: 14.6
• Branch Circuit Fuse (Amps): 20

Electric Heat Data with 30 Amp Plug:

• Heater Watts: 5,000
• Voltage: 265
• Heating BTU: 17,060
• Heating Current Amps: 19.0
• Minimum Circuit Ampacity: 24.1
• Branch Circuit Fuse (Amps): 30

Electrical Data:
• Voltage (1 PHASE, 60 Hz): 265
• Volt Range: 292-239
• Current (Amps): 5.7
• Reverse Heat Amps: 5.0
• Power Factor: 0.98
• Compressor LRA: 26.0
• Compressor RLA: 5.3
• Fan Motor Horsepower: 0.031

Airflow Data:
• Indoor CFM High: 385
• Indoor CFM Medium: 360
• Indoor CFM Low: 320
• Vent CFM: 75

Dimensions and Weights:
• Dimensions (Wall Sleeve): 16"H x 42"W x 13 3/4"D
• Dimensions (Cut Out): 16 1/4"H x 42 1/4"W
• Net Weight: 123
• Shipping Weight: 143
• R-410A Charge oz.: 36.23

Product Warranty
FIRST YEAR ANY PART:
• If any part supplied by Friedrich fails because of a defect in workmanship or material within twelve months from date of original purchase, Friedrich will repair the product at no charge, provided room air conditioner is reasonably accessible for service
SECOND THROUGH FIFTH YEAR-SEALED REFRIGERANT SYSTEM:
• If the Sealed Refrigeration System (defined for this purpose as the compressor, condenser coil, evaporator coil, reversing valve, check valve, capillary, filter drier, and all interconnecting tubing) supplied by Friedrich in your Room Air Conditioner fails because of a defect in workmanship or material within sixty months from date of purchase, Friedrich will pay a labor allowance and parts necessary to repair the Sealed Refrigeration System
• To contact Friedrich for Warranty and Service information call, 1-800-541-6645
