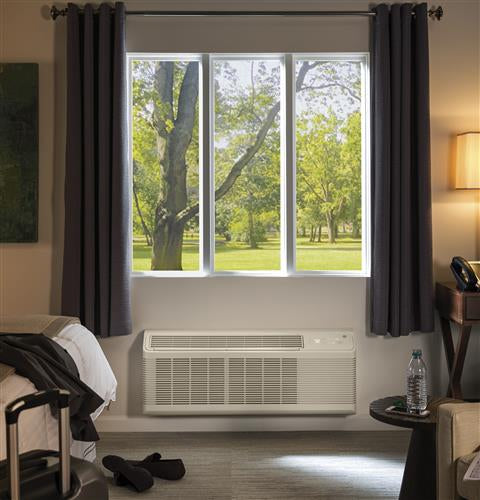

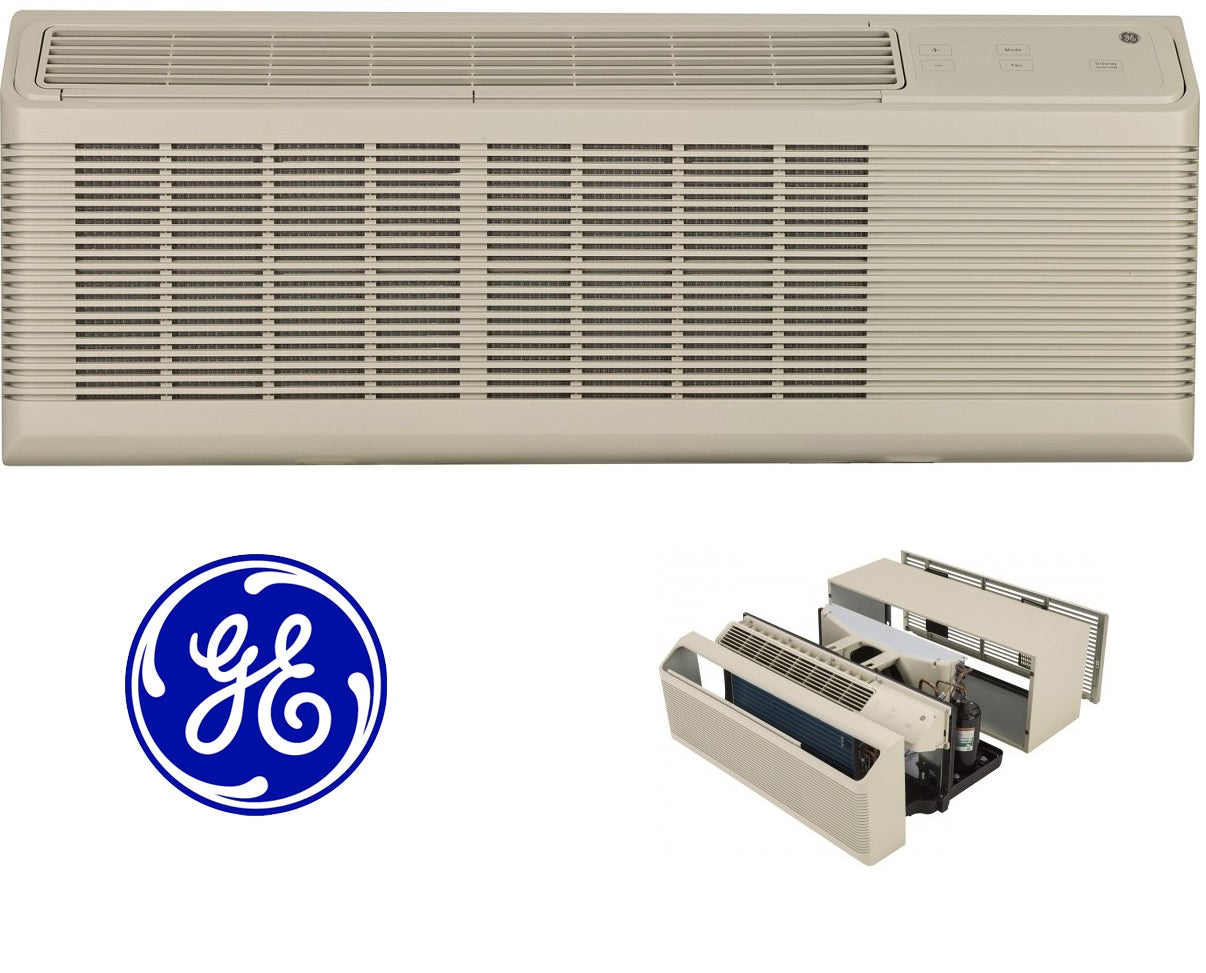

GE Zoneline AZ45E12DAM PTAC Air Conditioner with Electric Heat, 12,000 BTU, 230/208 Volt, EER Rating of 11.5, Make Up Fresh Air Series, Cords, Wall Sleeves and Grilles Needed for New Installations Sold Separately Redesigned with a fresh, sleek appearance, our latest Zoneline PTAC models offer new features customers want. GE Zoneline packaged terminal room air conditioners are assembled in Louisville, KY. In 1961, the GE Zoneline PTAC was making its way into hotels and motels across the country. Now, over 50 years later, GE Zoneline has been reinvented to meet the changing needs of America’s hotel industry. The newest GE Zoneline PTACs are engineered with 30% fewer parts to be more reliable, quiet and efficient, and incredibly easy to install and maintain. GE Zoneline PTAC Air Conditioners provide year-round comfort with individual heating and cooling temperature controls. Designed for a wide range of applications, these units are ideal for hotels and motels, office buildings, schools and apartments. All Zoneline units feature the exclusive GE "Superseal" system which minimizes energy usage by reducing air filtration. The result is maximum operating efficiency and a more comfortable room. All Zoneline units are also very quiet thanks to lower sound level and lower sound transmission. GE designed their Zoneline units with innovative, universal components, and offer even greater installation flexibility than ever, whether in new construction, renovation or for replacement of old units. Unless specified by code, they require no sub-base and may be installed flush with the finished floor. All models are adaptable to remote and central desk control. Zoneline units may even be placed in unusual locations, such as transom or common are installations. All units come with microcomputer controls.

FEATURES & BENEFITS

Smart Fan, Fan Cycle Control

Heat Sentinel

Freeze Sentinel

Venting Features: Concealed Manual Vent Control.

Vent Air Filter.

Outdoor Vent Control: 3 Positions

Temperature Limiting: Electronic 7-Step

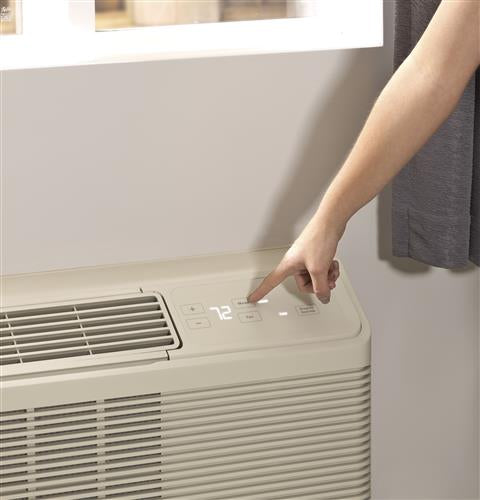

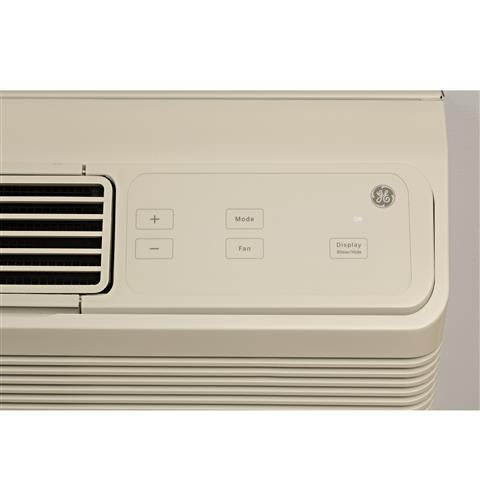

Control Type: Coverless Backlit White LED Touch Controls

Automatic Indoor Frost Control

Universal Heaters

Auto Power Recovery

Remote Thermostat Compatibility

Central Desk Control Compatibility

Proportional-Integral ID Airflow

Random Twist/Length Segment Tangential Blower

Weather Protected Electrical Components

Sleep Mode

LCDI Power Cord

SPECIAL FEATURES

Sensible Heat Ratio 60%

Chassis Type Slide-In

Control Type Coverless Backlit White LED Touch Controls

Discharge Grille 2-position

Electronic Micro Computer Control Yes

Fan Cycle Switch Yes

Fan Motor 2

Fan Speed Control Yes

Fan Speed Selections Hi/Low Cooling, Hi/Low Fan Only,

Hi/Low Heating

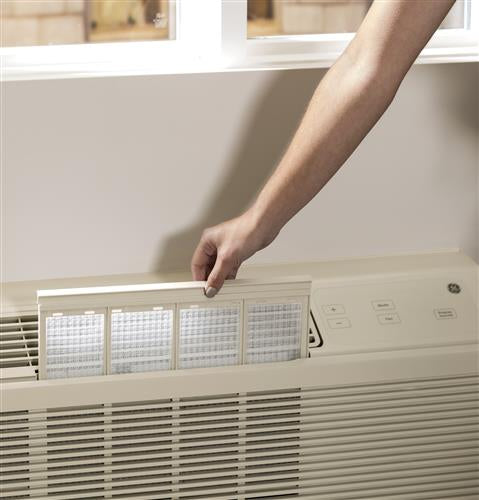

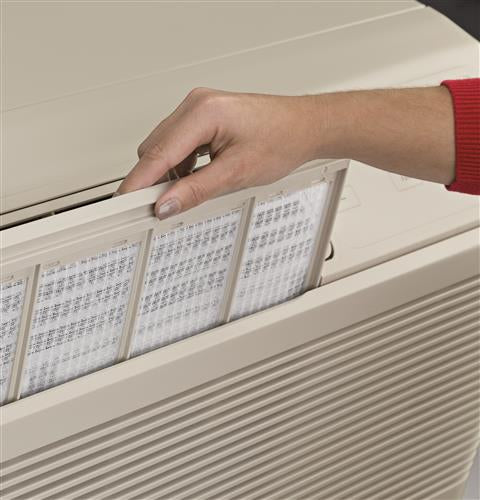

Filter Type Rigid Frame, Slide-Out

Heat - Cool Yes

Louver Style Reversible

Manual Vent Control Hidden

Rotary Compressor Yes

Temperature Limiting Electronic 7-Step

Vent Control 3-position

Venting Features Concealed Manual Vent Control

Outdoor Vent Control - 3 Positions

Vent Air Filter

Zoneline Features "Sleep" Mode

"Smart Fan" Fan Cycle Control

Auto Power Recovery

Automatic Indoor Frost Control

Central Desk Control Compatibility

Freeze Sentinel

Heat Sentinel

LCDI Power Cord

Proportional - Integral ID Airflow

Random Twist/Length Segment Tangential Blower

Remote Thermostat Compatibility

Universal Heaters

Weather Protected Electrical Components

Temperature Range 60 - 85 F

CAPACITY

Cooling BTUH (MIN) 11600.0 Btu

Cooling BTUH (MAX) 11800.0 Btu

Cooling EER (BTUH / Watt) 11.5/11.5

CFM Indoor Fan High 449

CFM Indoor Fan Low 300

Dehumidification (pts./hr.) 3.6

Vent CFM (high fan at zero ESP) 75/45

WEIGHTS & DIMENSIONS

Approximate Shipping Weight 110 lb

Net Weight 110 lb

Overall Depth 20 3/8 in

Overall Height 16 in

Overall Width 42 in

POWER/RATINGS

Cooling - Amperes; F.L. - Cooling 4.5/4.9

Cooling - Amperes; L.R. 29.5

Cooling - Watts 1020/1005

Power Factor 98

Voltage (MIN) 208.0 V

Voltage (MAX) 230.0 V

CLAIMS & CERTIFICATIONS

cUL

UL

AHRI

NRCAN

MANUFACTURER WARRANTY

Limited 1-year entire appliance

Limited 5-year sealed refrigerating system

Warranty Notes See written warranty for full details
