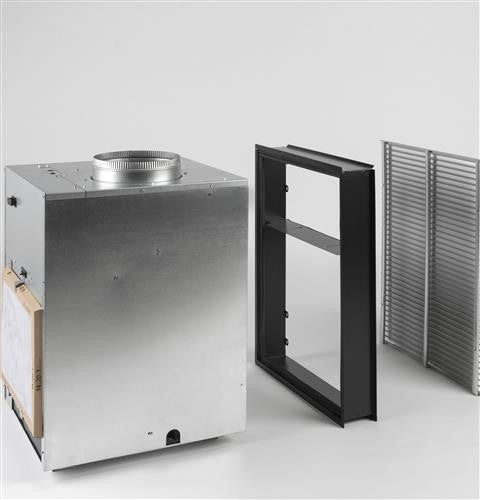

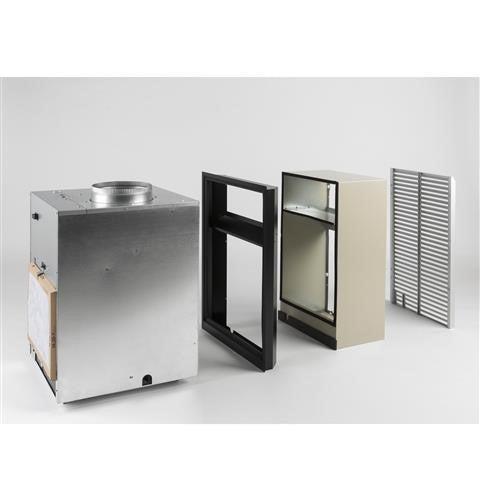

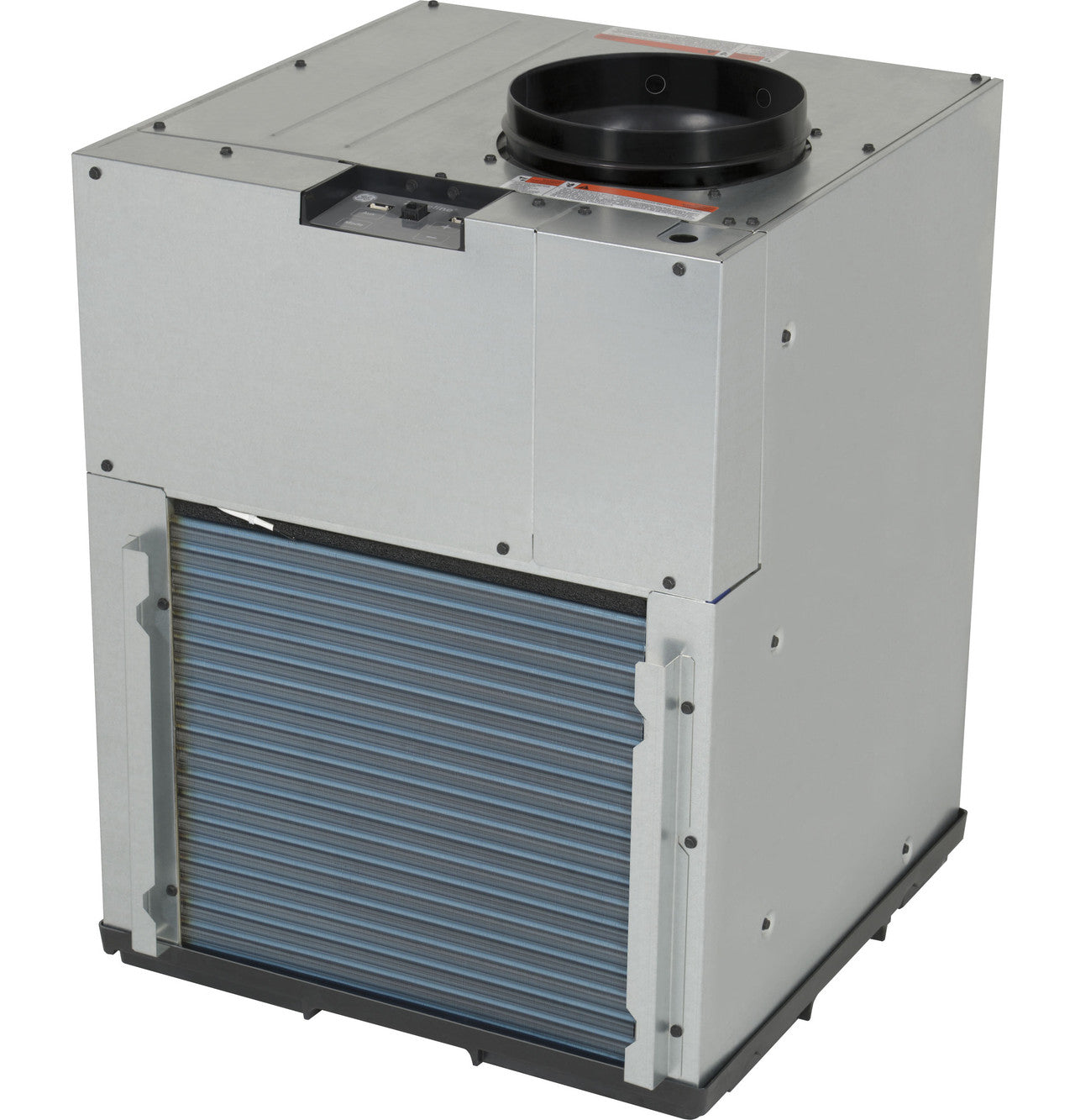

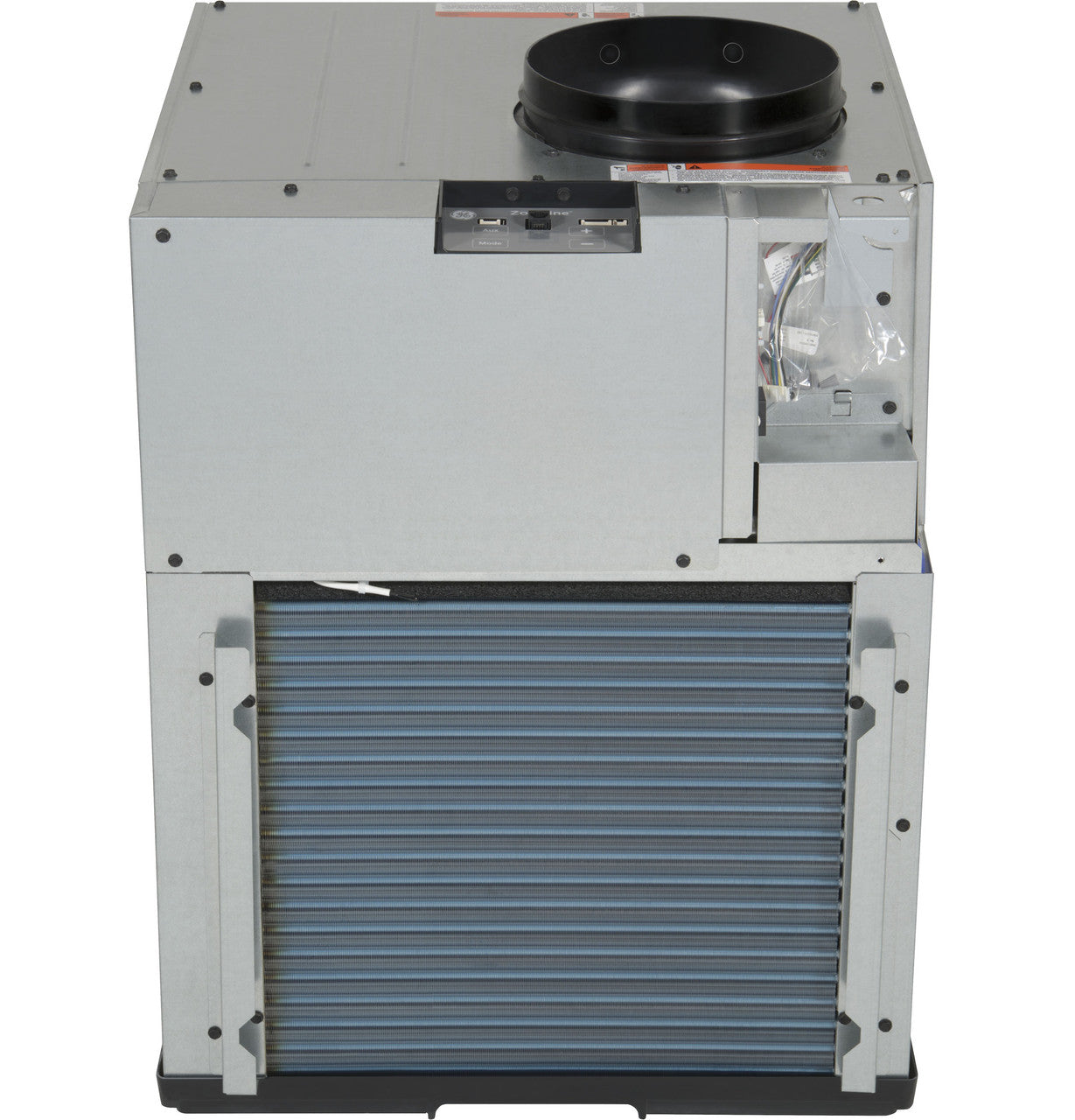

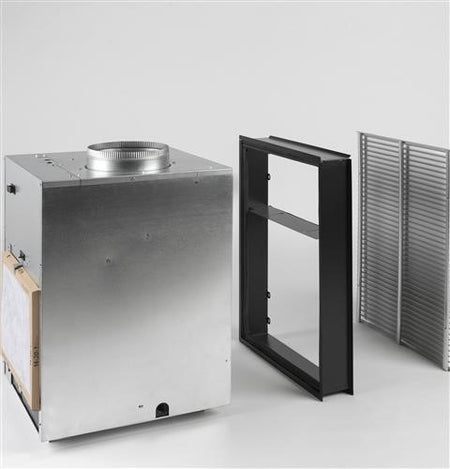

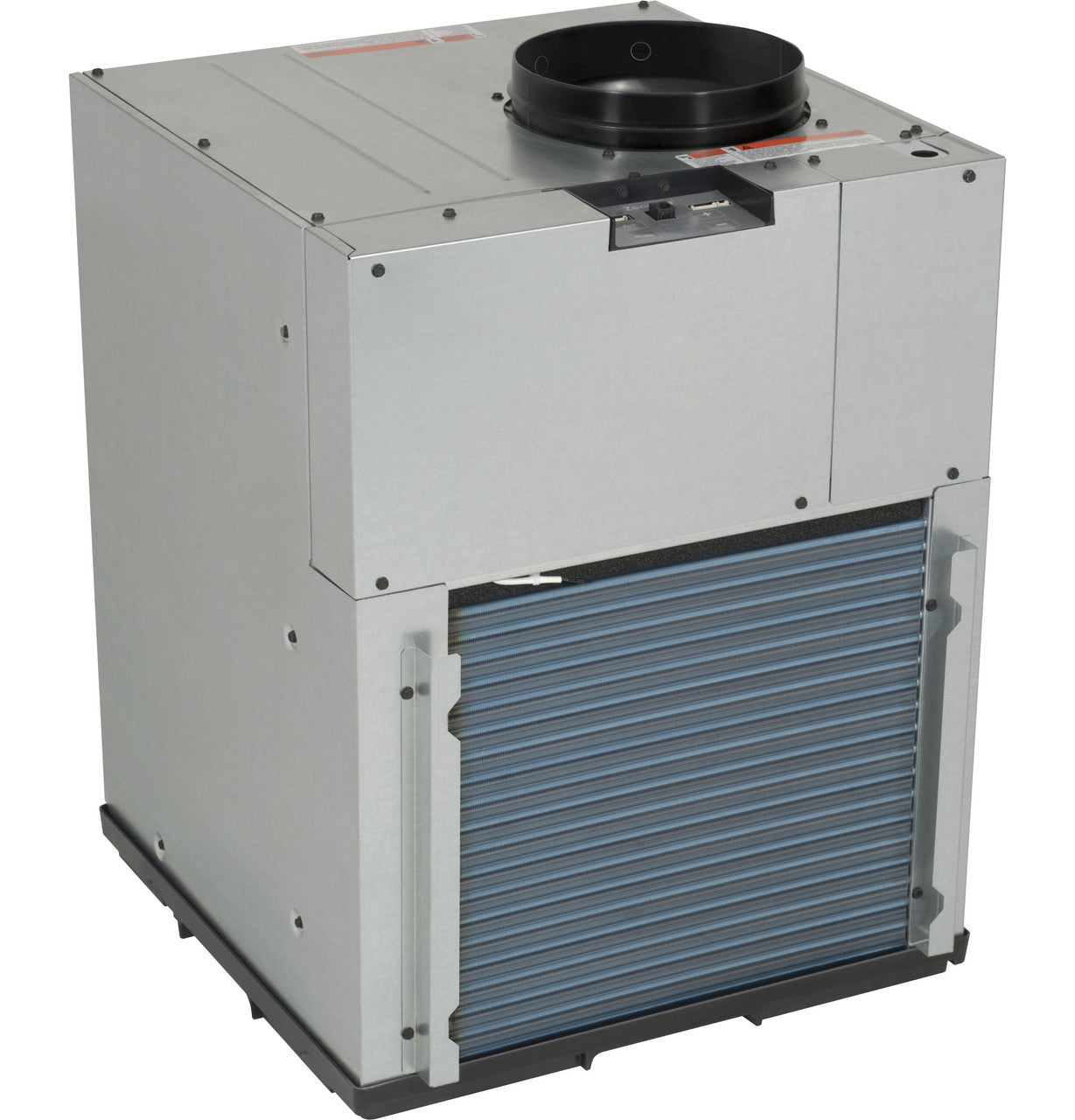

GE Zoneline AVES18DCXXA Cool/Electric Resistance Heat Single Package Vertical Air Conditioner 15,20 or 30 Amp 230/208 Volt, EER 10.9, 17,300 BTU, Corrosion Protection, Wall Plenum,Cord Kit And Grille Needed for New Installations Sold Separately

SKU: AVES18DCXXA
(0)
In stock
Usually ships in 3-4 business days

Please call 866-538-1651 for a price quote.
Product badge 1
Product badge 2
Product badge 4
Product badge 5
Product badge 8
Product badge 9
Product badge 10
Authorized Dealer

We are an Authorized Dealer for every manufacturer we represent, with over 15 years of experience, an A+ BBB rating, and products shipped factory-direct from the manufacturer to your door.

Free curbside shipping
100% secure payments

Ask an expert!

Email 866-538-1651
GE Zoneline AVES18DCXXA Cool/Electric Resistance Heat Single Package Vertical Air Conditioner 15 Amp 230/208 Volt, EER 10.9, 17,300 BTU, Corrosion Protection, Wall Plenum,Cord Kit And Grille Needed for New Installations Sold Separately

FEATURES AND BENEFITS

  • Rotary Compressor: Yes
  • Universal Heaters.
  • Solid State Thermostat.
  • Automatic Indoor Frost Control.
  • "Smart Fan" Fan Cycle Control.
  • Freeze Sentinel. Heat Sentinel (85F).
  • Auto Power Recovery.
  • Remote Control Disconnect Kit.
  • Weather Protected Electrical Components.
  • Reistance Heat
  • Automatic Emergency Heat.
  • Electric Resistance Heat Lockout.
  • Quick Heat Recovery.
  • DC Indoor and Outdoor Motors
  • Refrigerant Type: R-454B
  • Temperature Limiting: Yes
  • Sensible Heat Ratio: 76%
  • Fan Speed Selections: 3 Cooling
  • Heat Pump: Yes
  • Remote Thermostat: RAK148
  • Central Desk Control Compatibility: Yes
  • Manual Vent Control: Hidden
  • Corrosion Treated: Yes
    •

    PRODUCT CAPACITY

  • CFM Indoor Fan Medium: 408
  • Cooling BTUH (MAX): 18,000
  • Heating - Reverse Cycle - BTUH: 15,900
  • Cooling EER (BTUH/Watt): 11.0
  • Dehumidification (pts./hr.): 4.4
  • Programmable: No
  • Heat: Resistance Heat
  • Dry Air 25: No
  • Corrosion Protection: Yes
  • Voltage: 230V - 208V
  • Product Type: Zoneline Vertical
  • ICR: No
  • Cooling BTUh 17,300

    POWER RATINGS

  • Cooling - Watts: 1575
  • Voltage (MIN): 208.0
  • Heating - Reverse Cycle - COP: 3.3
  • Voltage (MAX): 230.0
  • Heating - Electric - Input Watts: 1580
  • Heating - Reverse Cycle - Heater Amps: 7.5
  • Cooling - Amperes; F.L. - Cooling: 8.1

    WEIGHTS & DIMENSIONS

  • Overall Height: 31 7/8
  • Approximate Shipping Weight: 145
  • Overall Depth: 24 1/8
  • Overall Width: 23 5/8
  • Net Weight: 133
    •

    MANUFACTURERS WARRANTY

  • Parts Warranty: Limited 2-year entire appliance.
  • Limited 5-year sealed refrigerating system
  • Labor Warranty: Limited 1-year entire appliance.
  • Limited 5-year sealed refrigerating system
  • Warranty Notes: See written warranty for full details
    •
