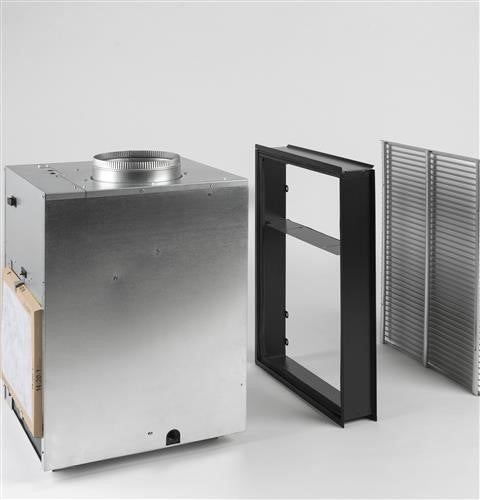

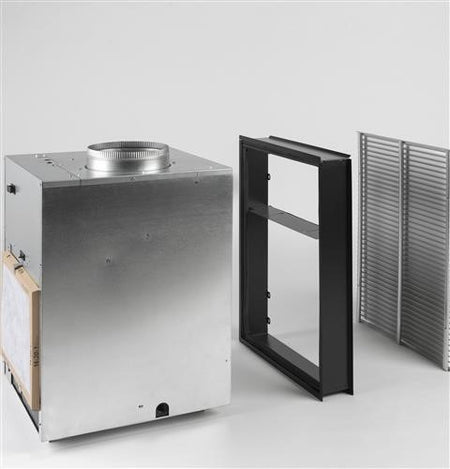

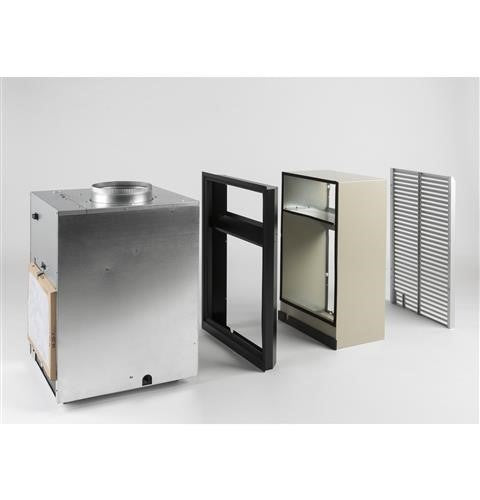

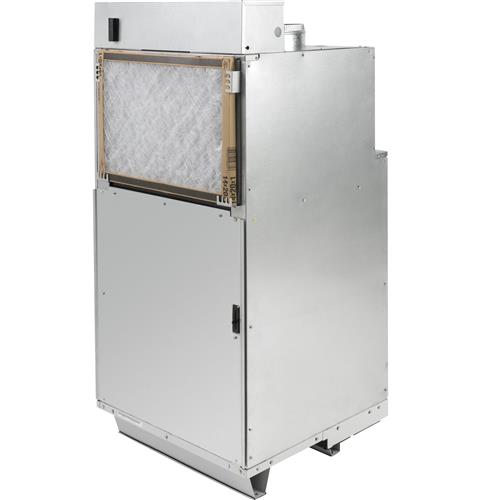

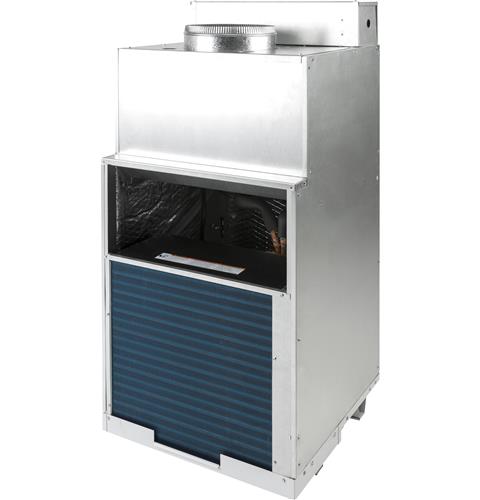

GE Zoneline AZ91H18E5C Heat Pump Single Package Vertical Air Conditioner 30 Amp 265 Volt, EER 10.0, 17,500 BTU, Corrosion Protection, Wall Plenum And Grille Needed for New Installations Sold Separately, Usually Built to Order, Call GE has introduced the Vertical Zoneline. It is still a through-the-wall, packaged terminal unit, but instead of being 42" wide and installed in the middle of the room, it has a vertical configuration and is installed in a closet-like corner enclosure. The GE Zoneline Vertical Packaged Terminal Air Conditioner has a top air discharge that is ducted into a single room or multiple rooms. It is controlled by a wall-mounted thermostat similar to those found in most homes. Because the VTAC is installed in a closet, it provides a more home-like appearance to the room as well as quieter operation. And guests prefer the wall thermostat because it provides more precise settings. Since the vertical Zoneline is not installed under a window in the middle of the room, curtains can hang all the way to the floor, and more versatile room designs are possible. Because the unit is ducted, it can serve a single room or multiple rooms. The GE Zoneline Vertical Packaged Terminal Air Conditioner is a great option to standard PTACs for cooling and heating a variety of rooms. It provides the costs benefit of packaged terminal units with the aesthetics, quieter operation and flexibility of a central system.

FEATURES AND BENEFITS

Rotary Compressor: Yes

Universal Heaters.

Solid State Thermostat.

Automatic Indoor Frost Control.

"Smart Fan" Fan Cycle Control.

Freeze Sentinel. Heat Sentinel (85F).

Auto Power Recovery.

Remote Control Disconnect Kit.

Weather Protected Electrical Components.

Heat Pump with Resistance Heat Backup.

Heat Pump with Supplemental Resistance Heat.

Automatic Emergency Heat.

Electric Resistance Heat Lockout.

Heat Pump Defrost System.

Quick Heat Recovery.

DC Indoor and Outdoor Motors

Refrigerant Type: R-410A

Temperature Limiting: Yes

Sensible Heat Ratio: 76%

Fan Speed Selections: 3 Cooling

Heat Pump: Yes

Remote Thermostat: RAK148

Central Desk Control Compatibility: Yes

Manual Vent Control: Hidden

Corrosion Treated: Yes

PRODUCT CAPACITY

CFM Indoor Fan High: 450

CFM Indoor Fan Low: 400

Vent CFM (high fan at zero ESP): 60

Cooling BTUH (MAX): 18,000

Heating - Reverse Cycle - BTUH: 16,500

Cooling EER (BTUH/Watt): 10.0

Dehumidification (pts./hr.):

Cooling BTUH (MIN):

FILTER

App Filter - Programmable: No

App Filter - Heat: Heat Pump

App Filter - Dry Air 25: No

App Filter - Corrosion: Yes

App Filter - Voltage: 265

App Filter - Product Type: Zoneline Vertical

App Filter - ICR: No

App Filter - Cooling BTUh: 12,999+

POWER RATINGS

Cooling - Watts: 1765

Voltage (MIN): 265

Heating - Reverse Cycle - COP: 3.0

Voltage (MAX):

Heating - Electric - Input Watts: 1605

Heating - Reverse Cycle - Heater Amps: 7.1

Cooling - Amperes; F.L. - Cooling: 7.7

WEIGHTS & DIMENSIONS

Overall Height: 47 1/4

Approximate Shipping Weight: 220

Overall Depth: 23 1/8

Overall Width: 23 1/8

Net Weight: 168

MANUFACTURERS WARRANTY

Parts Warranty: Limited 1-year entire appliance.

Limited 5-year sealed refrigerating system

Labor Warranty: Limited 1-year entire appliance.

Limited 5-year sealed refrigerating system

Warranty Notes: See written warranty for full details
