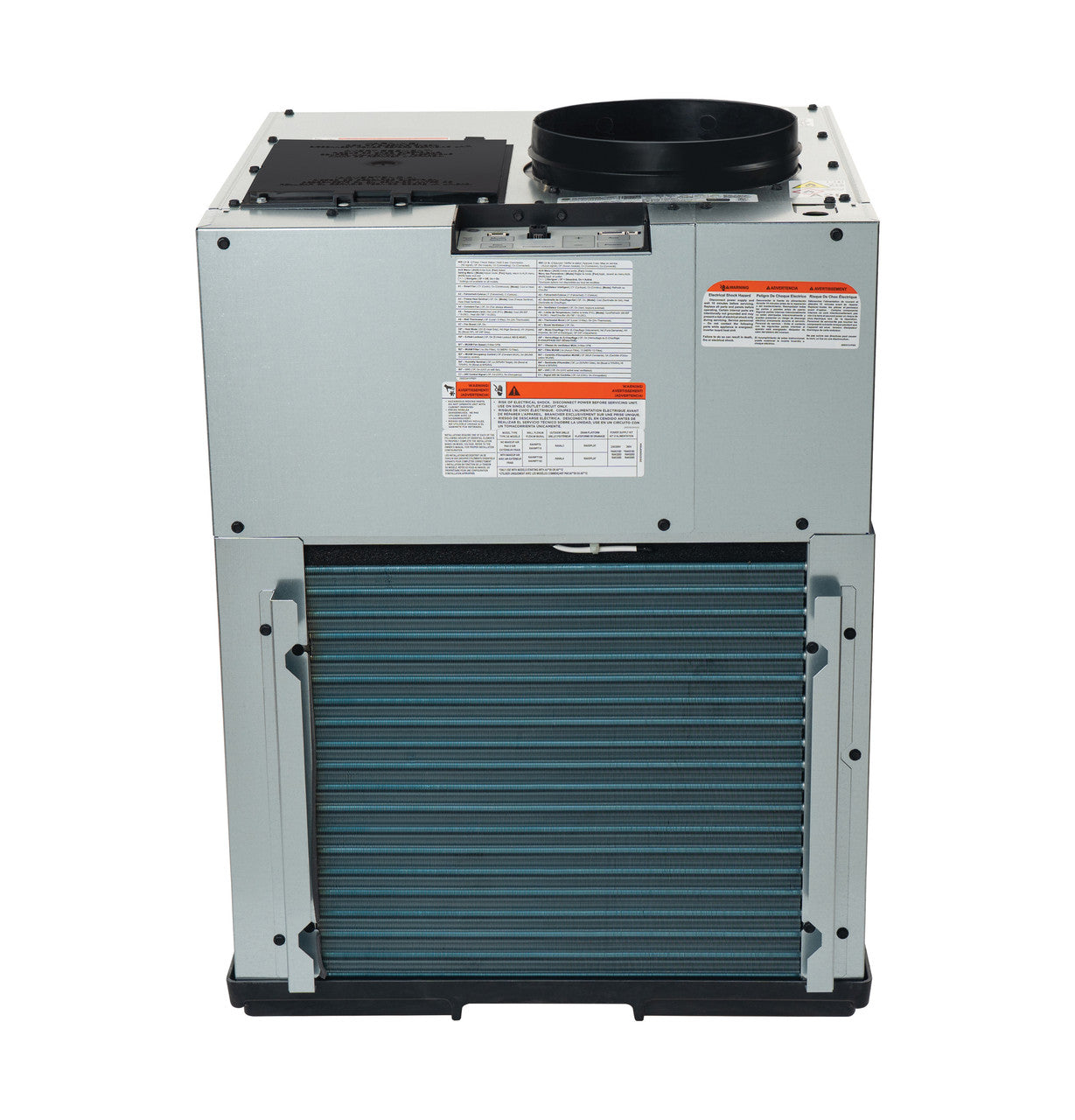

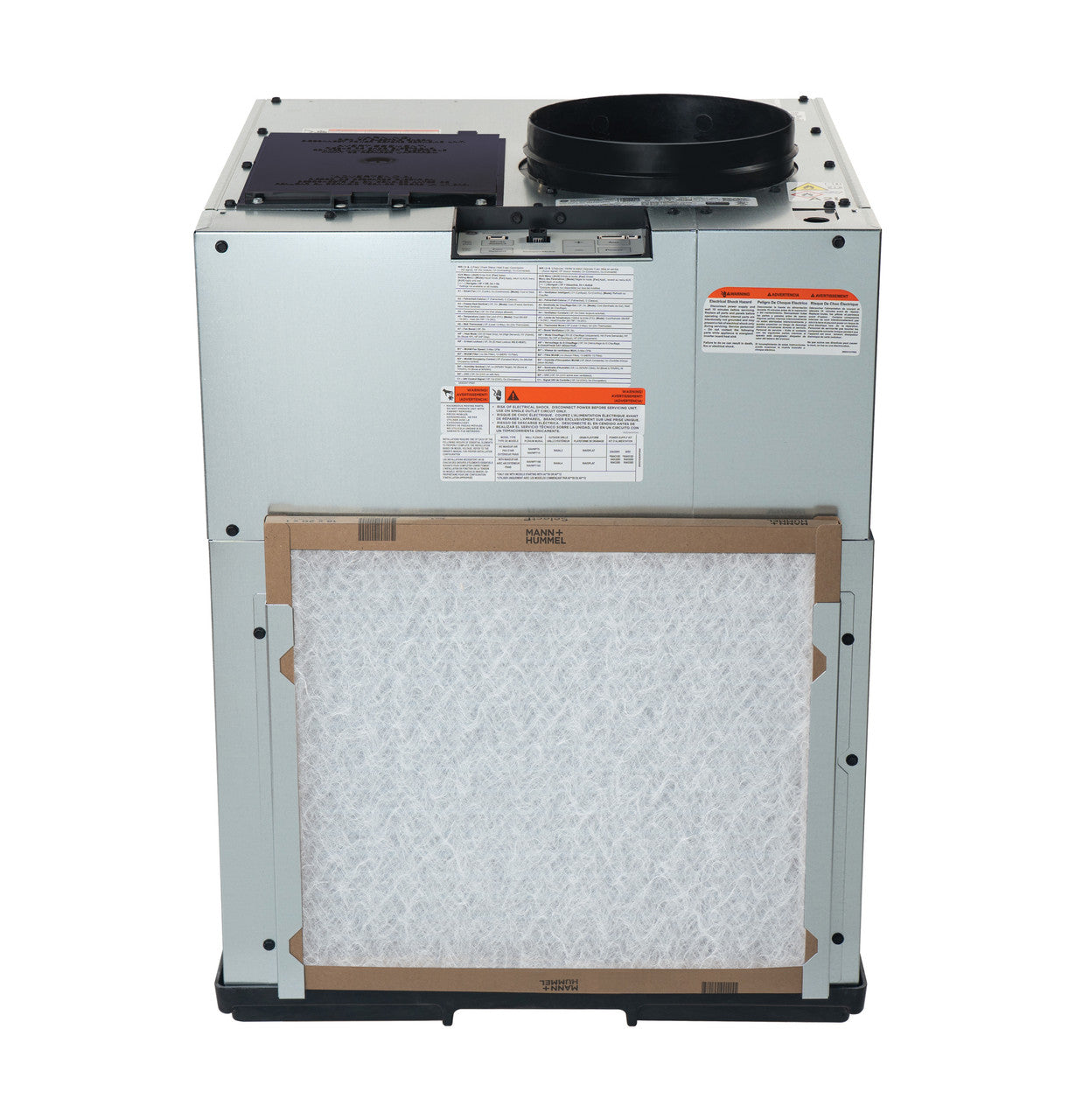

GE Zoneline AVVS12DCXWA Heat Pump With Makeup Air Single Package Vertical Air Conditioner 15,20 or 30 Amp 208/230 Volt, EER 12.0, 5,200-16,20000 BTU, Corrosion Protection, Wall Plenum, Cord Kit And Grille Needed for New Installations Sold Separately GE has introduced the Vertical Zoneline. It is still a through-the-wall, packaged terminal unit, but instead of being 42" wide and installed in the middle of the room, it has a vertical configuration and is installed in a closet-like corner enclosure. The GE Zoneline Vertical Packaged Terminal Air Conditioner has a top air discharge that is ducted into a single room or multiple rooms. It is controlled by a wall-mounted thermostat similar to those found in most homes. Because the VTAC is installed in a closet, it provides a more home-like appearance to the room as well as quieter operation. And guests prefer the wall thermostat because it provides more precise settings. Since the vertical Zoneline is not installed under a window in the middle of the room, curtains can hang all the way to the floor, and more versatile room designs are possible. Because the unit is ducted, it can serve a single room or multiple rooms. The GE Zoneline Vertical Packaged Terminal Air Conditioner is a great option to standard PTACs for cooling and heating a variety of rooms. It provides the costs benefit of packaged terminal units with the aesthetics, quieter operation and flexibility of a central system.

FEATURES AND BENEFITS

Rotary Compressor: Yes

Universal Heaters

Solid State Thermostat

Automatic Indoor Frost Control

"Smart Fan" Fan Cycle Control

Freeze Sentinel. Heat Sentinel (85F)

Auto Power Recovery

Remote Control Disconnect Kit

Weather Protected Electrical Components

Heat Pump with Resistance Heat Backup

Heat Pump with Supplemental Resistance Heat

Automatic Emergency Heat

Electric Resistance Heat Lockout

Heat Pump Defrost System

Quick Heat Recovery

DC Indoor and Outdoor Motors

Refrigerant Type: R-454B

Temperature Limiting: Yes

Sensible Heat Ratio: 76%

Fan Speed Selections: 3 Cooling

Heat Pump: Yes

Remote Thermostat: RAK148

Central Desk Control Compatibility: Yes

Manual Vent Control: Hidden

Corrosion Treated: Yes

PRODUCT CAPACITY

CFM Indoor Fan High: 465

CFM Indoor Fan Low: 380

Vent CFM (high fan at zero ESP): 60

Cooling BTUH (MAX): 16,200

Nominal Heating BTUH:10,900

Heating Range BTUH: 4,500-13,000 @ 47F

Cooling EER (BTUH/Watt): 12

Dehumidification (pts./hr.): 2.8

Nominal Cooling BTUH:12,000

Cooling BTUH (MIN): 5,200 @ 95F

Programmable: Yes

Heat: Heat Pump

Dry Air 25: No

Corrosion Protection: Yes

Voltage: 208/230V

Product Type: Zoneline Vertical

ICR: No

Cooling BTUh: 5,200 - 16,200

POWER RATINGS

Cooling - Watts:1050

Voltage (MIN): 208

Heating - Reverse Cycle - COP: 3.0/3.0

Voltage (MAX): 230

Heating - Electric - Input Watts: 3568

Heating - Reverse Cycle - Heater Amps: 13

Cooling - Amperes; F.L. - Cooling: 4.2

WEIGHTS & DIMENSIONS

Overall Height: 31 7/8

Approximate Shipping Weight:137

Overall Depth: 24 1/8

Overall Width: 23 5/8

Net Weight: 125

MANUFACTURERS WARRANTY

Parts Warranty: Limited 2-year entire appliance

Limited 5-year sealed refrigerating system

Labor Warranty: Limited 1-year entire appliance

Limited 5-year sealed refrigerating system

Warranty Notes: See written warranty for full details
