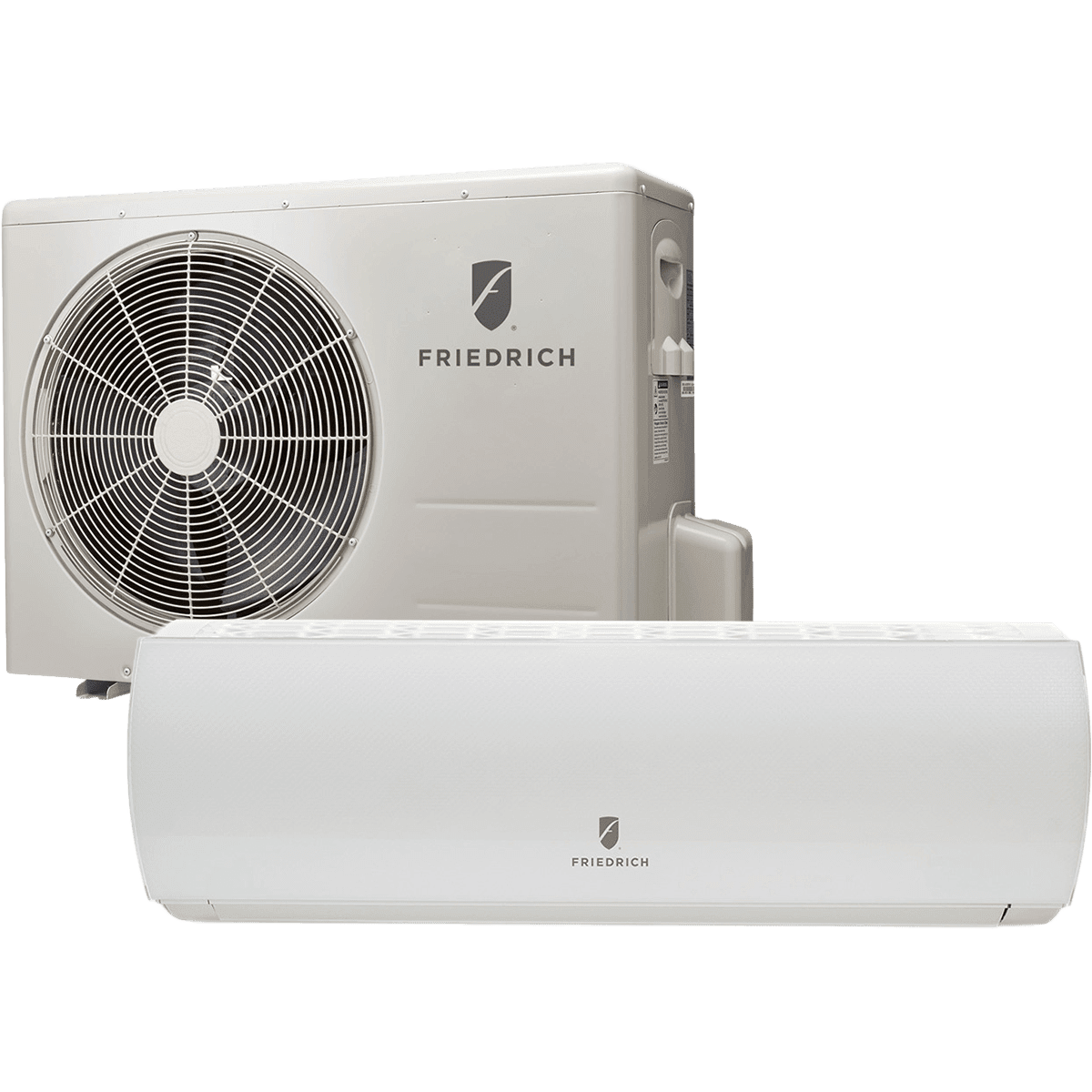

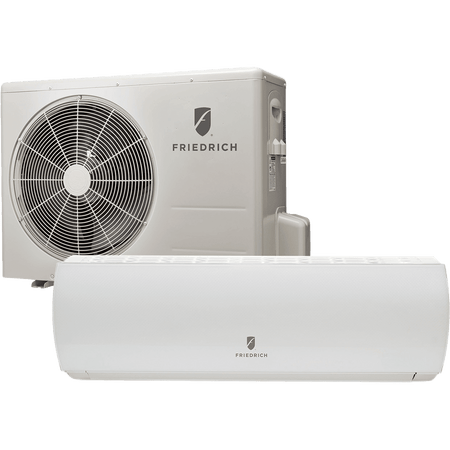

Friedrich Floating Air Premier FRHW123A 12,000 BTU Ductless Mini Split, Single Zone, 230/208 Volt, SEER Rating of 25.0, Energy Star, Inverter Heat Pump, Consists of FRHSW12A3B Indoor Unit with Remote and FRHSR12A3A Inverter Outdoor Condenser

SKU: FRHW123A
(0)
$1,799.00
-15% $2,119.00 $1,799.00
In stock
Usually ships in 3-4 business days
Product badge 1
Product badge 2
Product badge 3
Product badge 4
Product badge 5
Product badge 8
Product badge 9
Product badge 10
Authorized Dealer

We are an Authorized Dealer for every manufacturer we represent, with over 15 years of experience, an A+ BBB rating, and products shipped factory-direct from the manufacturer to your door.

Free curbside shipping
100% secure payments

Ask an expert!

Email 866-538-1651
Friedrich FRHW123A 12,000 BTU Ductless Mini Split, Single Zone, 230/208 Volt, SEER Rating of 25.0, Energy Star, Inverter Heat Pump, Consists of FRHSW12A3B Indoor Unit with Remote and FRHSR12A3A Inverter Outdoor Condenser Ductless mini-split systems are easier to install than some other types of space conditioning systems. For example, the hook-up between the outdoor and indoor units generally requires only a three-inch hole through a wall for the conduit. Most manufacturers of this type of system can provide a variety of lengths of connecting conduits, and, if necessary, you can locate the outdoor unit as far away as 50 feet from the indoor evaporator. This makes it possible to cool rooms on the front side of a house, but locate the compressor in a more advantageous or inconspicuous place on the outside of the building. Mini splits have no ducts, so they avoid the energy losses associated with the ductwork of central forced air systems. Duct losses can account for more than 30% of energy consumption for space conditioning, especially if the ducts are in an unconditioned space such as an attic.

FEATURES & BENEFITS

  • Wall-mounted
  • 9000 & 12000 BTU. Top cooling and heating performance in extreme climates.
  • 28.0 SEER - our highest efficiencies ever!
  • Precision Inverter® technology (variable speed compressor)
  • Soft start compressor
  • BLDC motor
  • High efficiency for low operating cost
  • DiamonBlue Advanced Corrosion Protection®
  • Auto Clean indoor coil
  • Cooling/Heating/Fan/Auto mode
  • Surge Cool/Heat
  • Natural air flow
  • Ultra quiet operation
  • Sleep mode
  • Auto restart
  • Auto changeover
  • 24-hour on/off timer
  • ENERGY STAR® qualified model
  • Hidden display (only visible during operation)

    OPERATION IN EXTREME CONDITIONS

  • Low ambient operation down to 0º F (Cooling mode)
  • Low ambient operation down to -13º F (Heating mode)
    •

    PRODUCT SPECIFICATIONS

  • SYSTEM MODEL #: FRHW123A

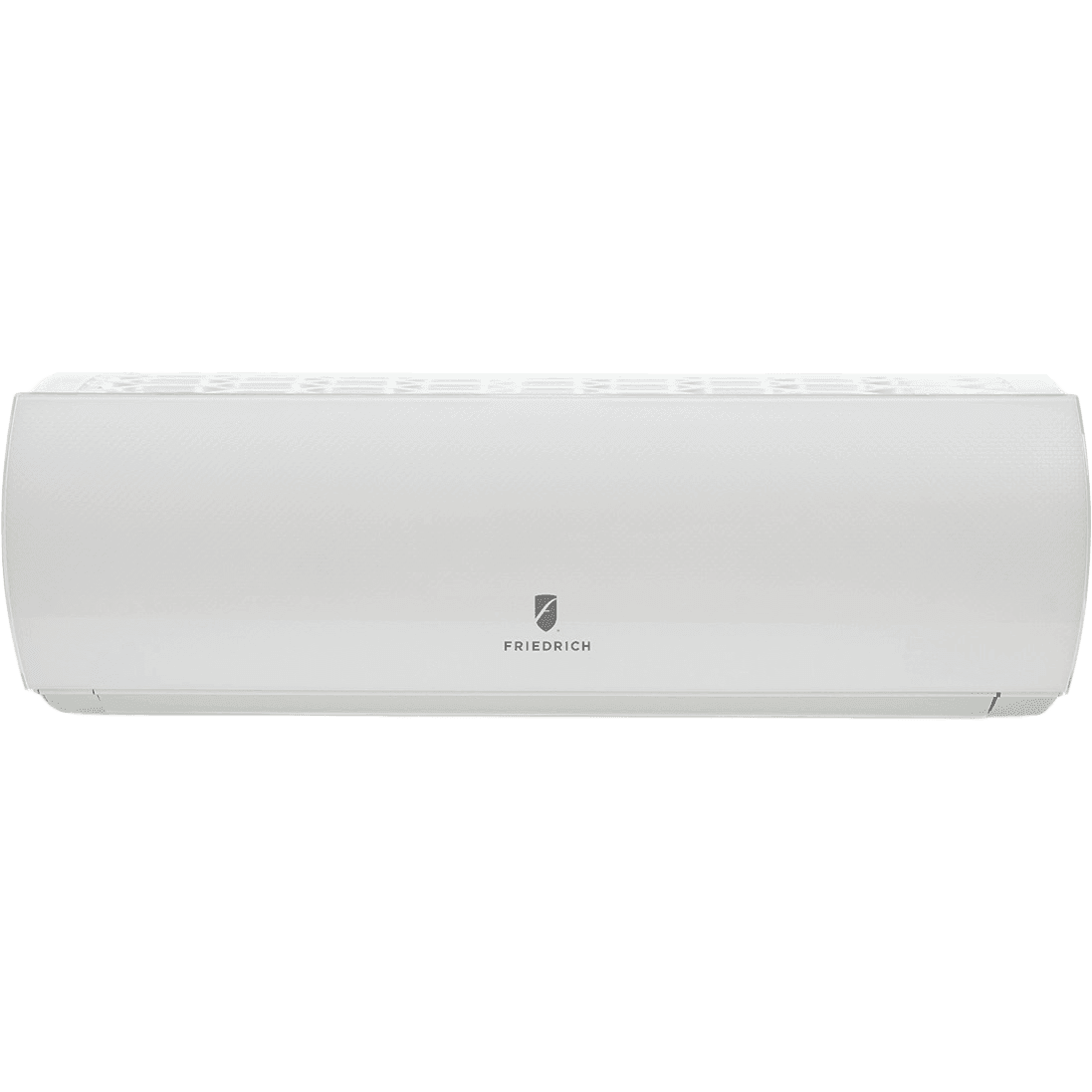

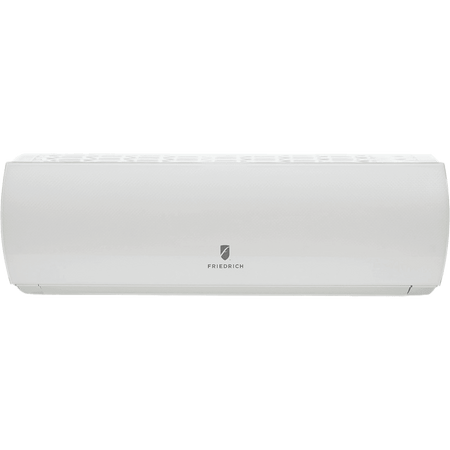

  • INDOOR MODEL: FRHSW12A3B

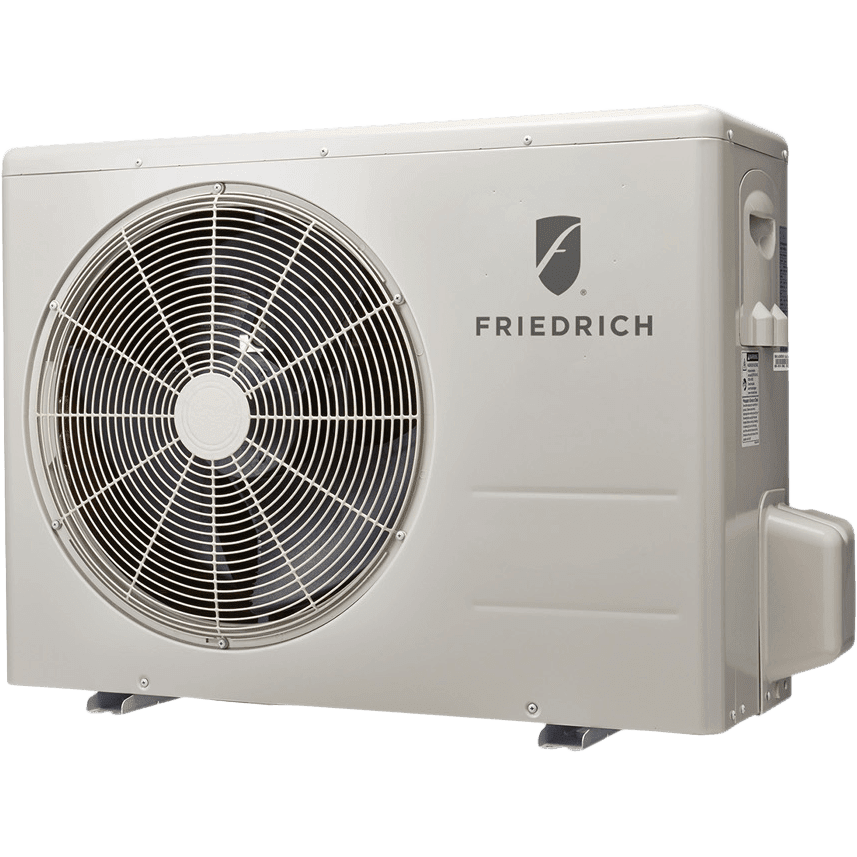

  • OUTDOOR MODEL: FRHSR12A3A
  • CAPACITY COOLING (RATED): 12,000 BTU
  • CAPACITY COOLING (MIN~MAX): 4000-13500 BTU
  • CAPACITY HEATING @ 47 degrees: F (RATED) 12,957 BTU
  • CAPACITY HEATING @17 degrees: F (RATED) 8,030 BTU
  • CAPACITY HEATING (MIN~MAX): 4000-14000 BTU
  • COOLING AMPS: 4.6
  • HEATING AMPS: 4.8
  • SENSIBLE HEAT RATIO: 0.85
  • SEER: 25.0
  • EER: 15.5
  • HSPF: 12.0
  • ENERGY STAR
  • MOISTURE REMOVAL: Pts/h 2.54
  • AIRFLOW (QUIET, LOW, MED, HIGH): CFM 598/536/446/345
  • SOUND RATING - INDOOR: dB-A 45/41/39/36
  • SOUND RATING - OUTDOOR: dB-A 55
  • OPERATING RANGE (COOLING): °F 0-115
  • OPERATING RANGE (HEATING): °F -13-75

    ELECTRICAL DATA

  • POWER SOURCE: V 208/230/60/1
  • MINIMUM AMPACITY: 12A
  • COOLING WATTS: 775W
  • HEATING WATTS: 850W
  • MAX. TD FUSE/BREAKER: 3x16AWG
  • POWER AND COMMUNICATION CABLE: 4x18AWG

    REFRIGERANT LINE DATA

  • REFRIGERANT: R410A
  • COMPRESSOR TYPE: Rotary
  • CONNECTIONS: Flare
  • LIQUID LINE O.D: 1/4 in.
  • SUCTION LINE O.D.: 3/8 in.
  • FACTORY PRECHARGE: 24.6 feet
  • REFRIGERANT CHARGE: 45.9 oz.
  • MIN./MAX. LINE LENGTH: 65.4 feet
  • MAX. HEIGHT DIFFERENCE: 16.4 feet

    DIMENSIONS & WEIGHTS

  • INDOOR UNIT: W X H X D in: 36 x 12 3/8 x 9 5/16
  • NET WEIGHT: 28.6 lbs.
  • SHIPPING WEIGHT: 33.0 lbs.
  • OUTDOOR UNIT: W X H X D in: 31 7/8 x 23 x 11
  • NET WEIGHT: 72.6 lbs.
  • SHIPPING WEIGHT: 79.2 lbs.
  • TOTAL NET WEIGHT: 101.2 lbs.
  • TOTAL SHIPPING WEIGHT: 112.2 lbs.
    •

    MANUFACTURERS WARRANTY

  • FIVE YEAR WARRANTY - FRIEDRICH AIR CONDITIONING CO. (FRIEDRICH) warrants to the original end-user of this product that should it prove defective due to improper workmanship and/or material under normal use for a period of five years from the date of installation, FRIEDRICH will repair or replace, at its option, any defective part without charge for the part. Replacement parts are warranted for the remainder of the original warranty period. THIS WARRANTY DOES NOT INCLUDE LABORC)
  • SEVEN YEAR COMPRESSOR WARRANTY- During the seven year warranty period from the date of installation, should the compressor prove defective due to improper workmanship and/or material, FRIEDRICH will furnish a replacement compressor, at no charge, which is warranted for the remainder of the original warranty period. LABOR IS NOT INCLUDED FOR INSTALLING REPLACEMENT COMPRESSOR

    COOL RUNNING AIR CONDITIONERS & MORE DUCT FREE PRODUCTS INTERNET SALES POLICY

  • Friedrich's expressed Duct Free Air Conditioning Warranty policy applies only to products sold and installed by qualified air conditioning contractors.
  • Because products sold via the internet cannot be assured of quality installation by a qualified air conditioning contractor, Friedrich's expressed warranty may not apply to internet sales.
  • Friedrich supports and recommends that a qualified air conditioning contractor properly size and install all Friedrich Duct-Free Air Conditioning products for optimal performance and long life.
  • Cool Running Hospitality Supply agrees and fully supports this policy. Friedrich and Cool Running accept no responsibility for improperly installed units.
    •
    • Orders for "In Stock" items weighing less than 80lbs, will be shipped via UPS or FedEx ground.
    • Orders for "In Stock" items weighing more than 80lbs, will be shipped via LTL Freight carrier.
    • Shipment of "In Stock" orders are usually completed within 2-3 business days of receiving your order and transit time will depend on your location's distance from shipper and method of shipping, but usually no more than 7 business days from shipment day.
