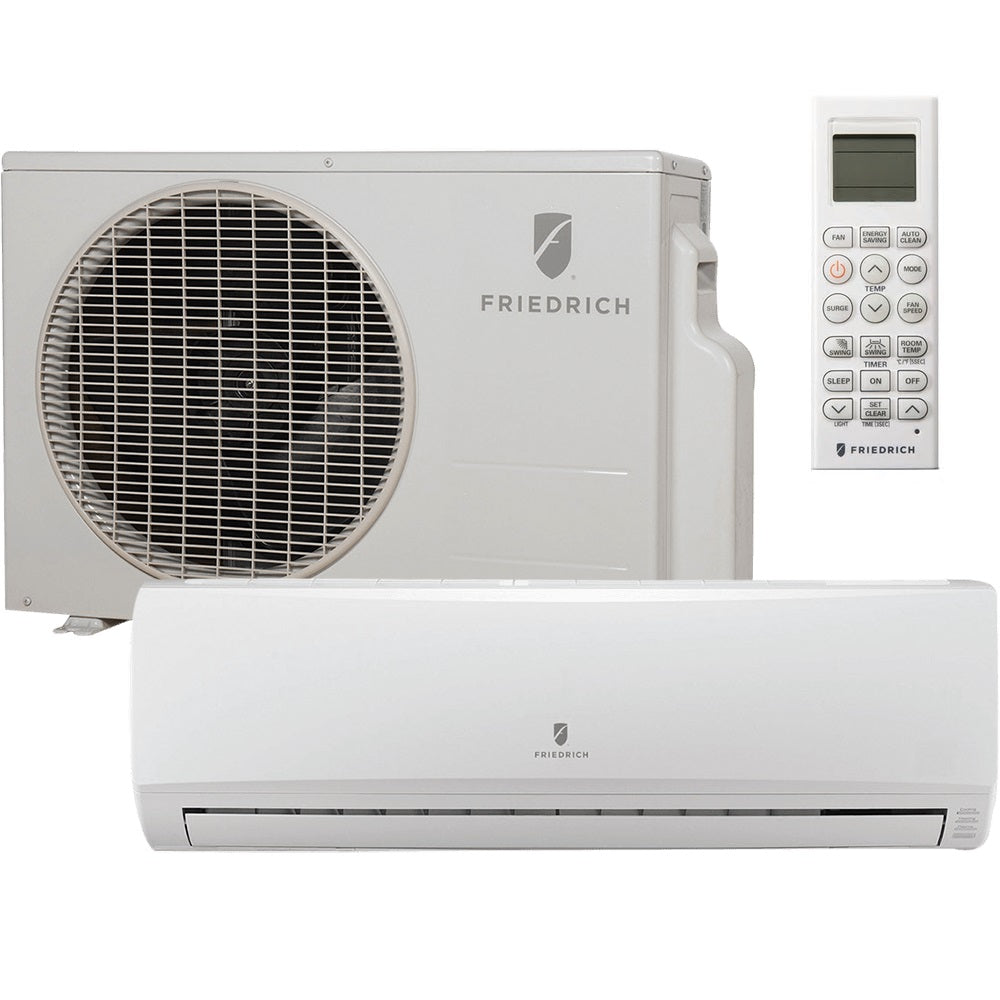

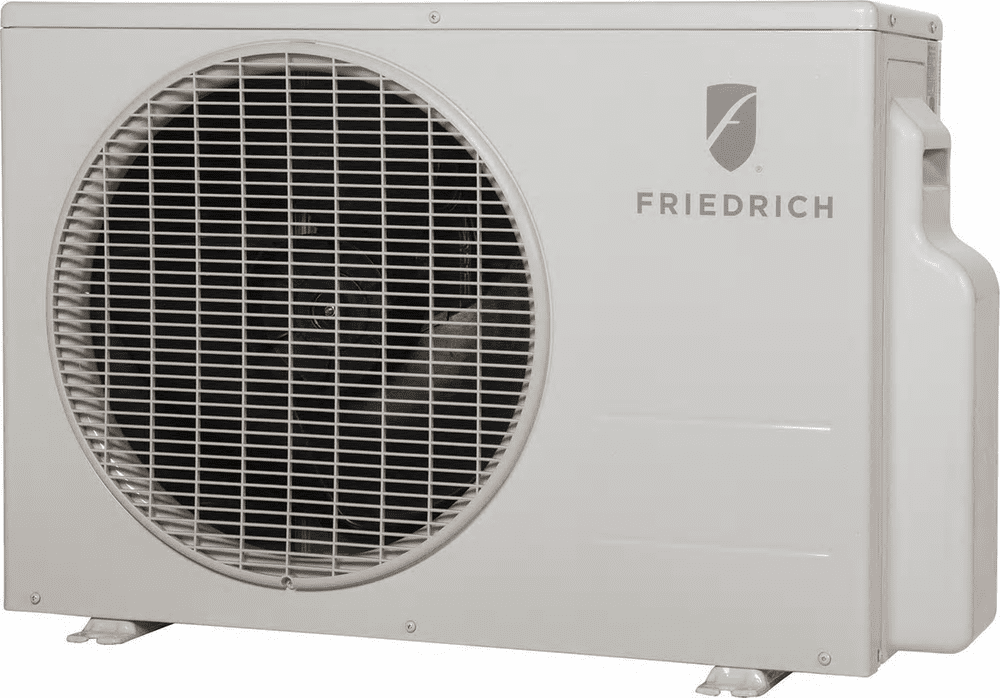

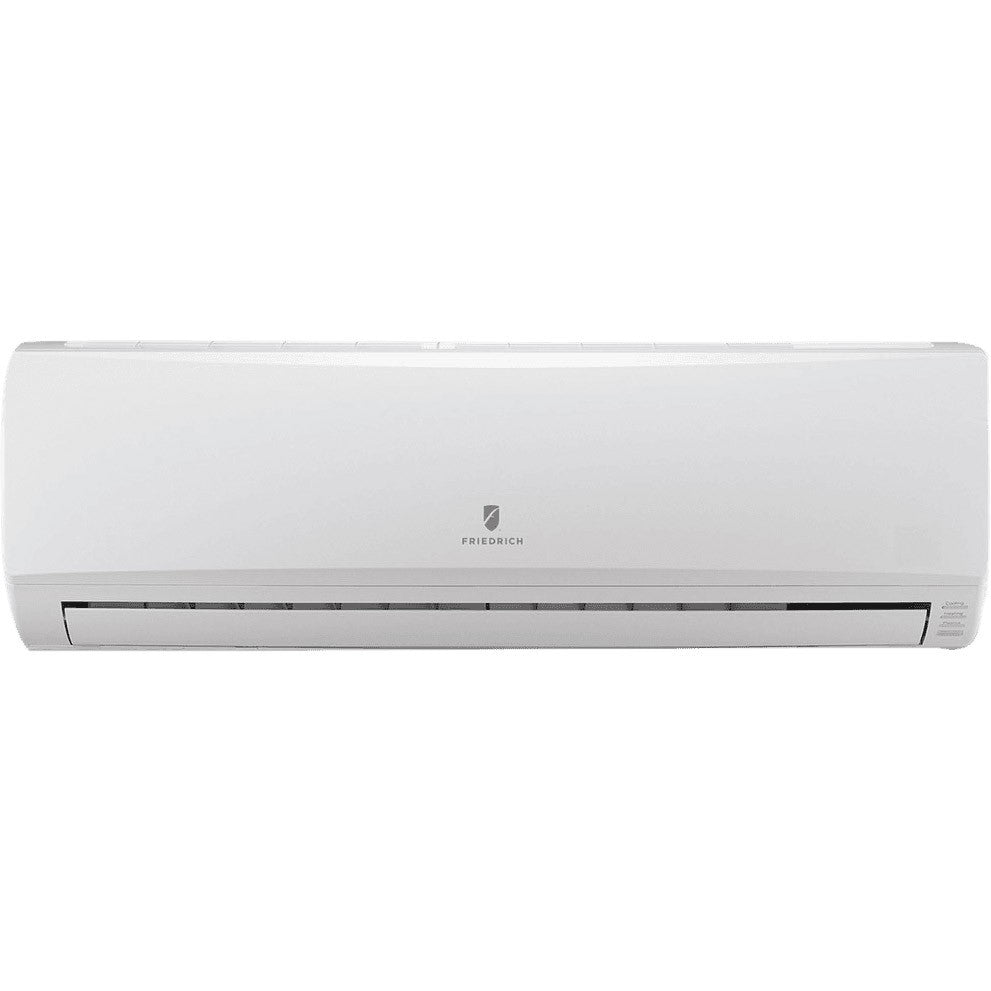

Friedrich FPHW091C 9,000 BTU Ductless Mini Split, Single Zone, 115 Volt, SEER Rating of 21.5, Energy Star, Cooling Only, Consists of FPHFW09A3B Indoor Unit with Remote and FPHSR09A3A Inverter Outdoor Condensor Friedrich air conditioners are hard-working and hard-wearing. Our commercial-grade products are the first choice for tough environments, from oil rigs to the Kennedy Space Center. Constructed from the highest-quality materials and components, these units are built to exacting standards — yet they are among the quietest and most energy-efficient available. You’ll find commercial-grade products for residential use as well. Our ultra-premium Kühl and premium Chill lines give you superior quality, performance and quiet operation in a full range of capacities. For a commercial-grade thru-the-wall unit, WallMaster leads the category.
Each Friedrich product starts with a great idea. Our team of engineers develops multiple concepts and selects only the most promising designs. Prototypes are subject to intense scrutiny and testing in our UL-approved lab. Air conditioner prototypes are soak-tested for performance in high humidity and operated in extreme temperatures. They are run continuously to test their longevity. Electronic controls can undergo hundreds of hours of testing. We try to mar the finishes. We even test the packaging’s durability on ramps, in truck beds and by dropping and shaking the boxes. Refinements are made. Then there are more tests and feedback leading to more refinements. Conventions are challenged—all before the first machine is manufactured. Of course, we also conduct extensive field testing in offices, homes and commercial settings. All to ensure that you get the quality and durability you expect from Friedrich.
No ductwork? No problem. Incredibly quiet, sleek and energy-efficient, ductless split systems are the smart way to cool rooms without ductwork—even those without windows or exterior walls. The entire line, including hard-to-find 115v wall-mounted models, utilizes Inverter Technology which allows systems to reach the desired temperature faster, maintain it more accurately, and reduce energy costs. SEER ratings up to 25.0.

LITERATURE DOWNLOADS

FRIEDRICH FLOATING AIR MINI SPLIT SALES BROCHURE

FRIEDRICH J SERIES MINI SPLIT SALES BROCHURE

FEATURES & BENEFITS

9000 Cooling BTU

Energy Star Qualified

Monitors and maintains set point

Programmable 24-hour timer

Sleep timer

Energy Saver

Continuous air sweep

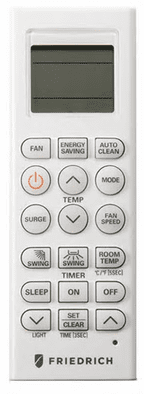

Wireless remote control

Four fan speeds plus auto fan

Auto/cool/dry fan modes

Auto restart

Washable air filters

Auto shut flaps

PRODUCT SPECIFICATIONS

Cooling Capacity: 9000 BTU

Cooling Capacity Min - Max: 4435 - 10600 BTU/h

SEER: 21.5

EER: 14.0

Moisture Removal (Pts/H): 1.69

Air Flow (Quiet, Low, Med, High) CFM: 217/253/294/329

Sound Rating Indoor dB-A (Quiet, Low, Med, High): 26/30/34/38

Sound Rating Outdoor dB-A: 53

Operating Range ºF: 0-115

ELECTRICAL DATA

Power Source: 115-60-1

Cooling Watts: 643

Max. TD Fuse/Breaker (AMPS): 25 (Recommended circuit breaker size 20 Amps)

REFRIGERANT LINE DATA

Refrigerant Type: R410A

Compressor Type: Inverter

Connections: Flare

Liquid Line O.D: 1/4"

Suction Line O.D: 3/8"

Factory Pre Charge Refrigerant: sufficient amount for up to 25 ft. of line

Max Line Length: 66 Ft.

Max Height Difference: 33 Ft.

DIMENSIONS & WEIGHTS

Indoor Unit Dimensions (W x H x D): 33 1/4" x 10 7/8" x 7 1/8"

Indoor Unit Net weight: 24

Outdoor Unit Dimensions (W x H x D): 33 3/8" x 21 1/4" x 12 5/8"

Outdoor Unit Net Weight: 80

LITERATURE DOWNLOADS

FRIEDRICH FLOATING AIR MINI SPLIT SALES BROCHURE

FRIEDRICH J SERIES MINI SPLIT SALES BROCHURE

MANUFACTURERS WARRANTY

FIVE YEAR WARRANTY - FRIEDRICH AIR CONDITIONING CO. (FRIEDRICH) warrants to the original end-user of this product that should it prove defective due to improper workmanship and/or material under normal use for a period of five years from the date of installation, FRIEDRICH will repair or replace, at its option, any defective part without charge for the part. Replacement parts are warranted for the remainder of the original warranty period. THIS WARRANTY DOES NOT INCLUDE LABORC)

SEVEN YEAR COMPRESSOR WARRANTY- During the seven year warranty period from the date of installation, shouldthe compressor prove defective due to improper workmanship and/or material, FRIEDRICH will furnish a replacement compressor, at no charge, which is warranted for the remainder of the original warranty period. LABOR IS NOT INCLUDED FOR INSTALLING REPLACEMENT COMPRESSOR

COOL RUNNING AIR CONDITIONERS & MORE DUCT FREE PRODUCTS INTERNET SALES POLICY

Friedrich's expressed Duct Free Air Conditioning Warranty policy applies only to products sold and installed by qualified air conditioning contractors.

Because products sold via the internet cannot be assured of quality installation by a qualified air conditioning contractor, Friedrich's expressed warranty may not apply to internet sales.

Friedrich supports and recommends that a qualified air conditioning contractor properly size and install all Friedrich Duct-Free Air Conditioning products for optimal performance and long life.

Cool Running Hospitality Supply agrees and fully supports this policy. Friedrich and Cool Running accept no responsibility for improperly installed units.
