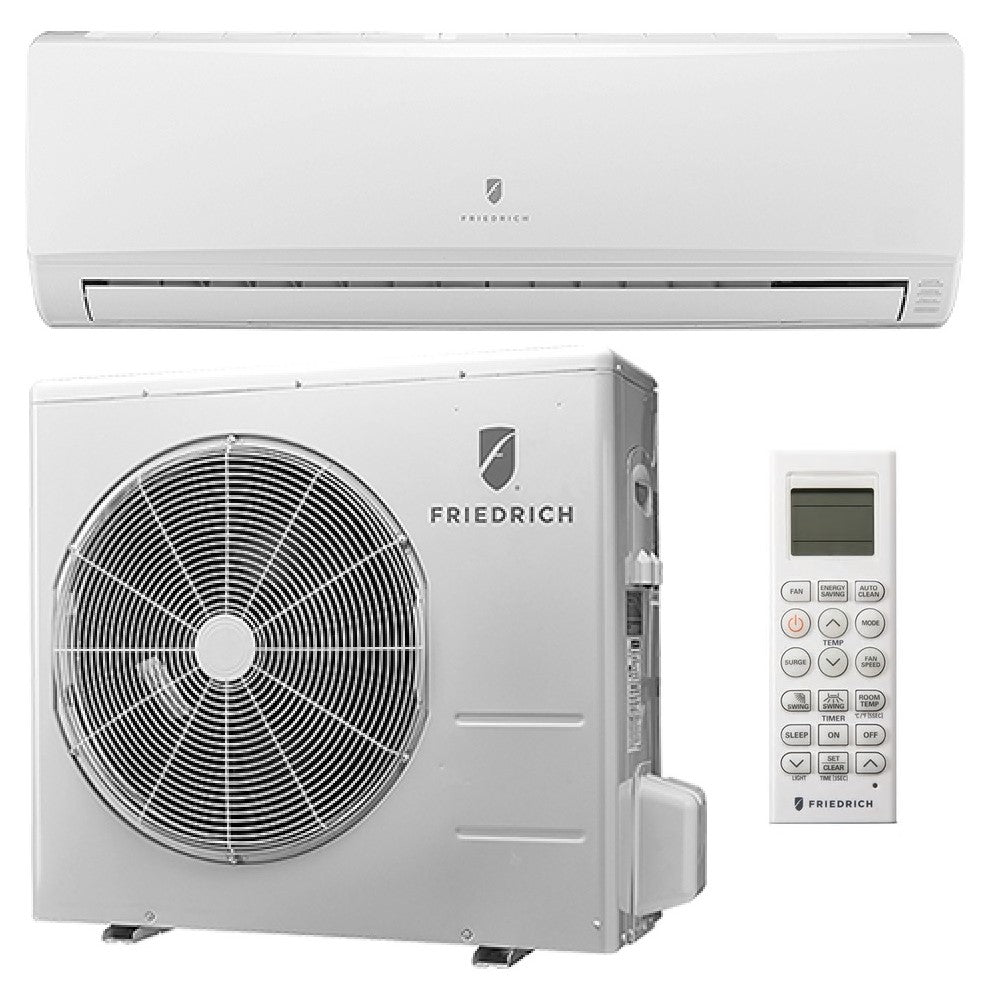

Friedrich FPHW243D 24,000 BTU Ductless Mini Split, Single Zone, 230/208 Volt, SEER Rating of 18.0, Inverter Heat Pump, Consists of Indoor Unit FPHFW24A3B with Remote and FPHSR24A3A Inverter Outdoor Condenser Friedrich air conditioners are hard-working and hard-wearing. Our commercial-grade products are the first choice for tough environments, from oil rigs to the Kennedy Space Center. Constructed from the highest-quality materials and components, these units are built to exacting standards — yet they are among the quietest and most energy-efficient available. You’ll find commercial-grade products for residential use as well. Our ultra-premium Kühl and premium Chill lines give you superior quality, performance and quiet operation in a full range of capacities. For a commercial-grade thru-the-wall unit, WallMaster leads the category.
Each Friedrich product starts with a great idea. Our team of engineers develops multiple concepts and selects only the most promising designs. Prototypes are subject to intense scrutiny and testing in our UL-approved lab. Air conditioner prototypes are soak-tested for performance in high humidity and operated in extreme temperatures. They are run continuously to test their longevity. Electronic controls can undergo hundreds of hours of testing. We try to mar the finishes. We even test the packaging’s durability on ramps, in truck beds and by dropping and shaking the boxes. Refinements are made. Then there are more tests and feedback leading to more refinements. Conventions are challenged—all before the first machine is manufactured. Of course, we also conduct extensive field testing in offices, homes and commercial settings. All to ensure that you get the quality and durability you expect from Friedrich.
No ductwork? No problem. Incredibly quiet, sleek and energy-efficient, ductless split systems are the smart way to cool rooms without ductwork—even those without windows or exterior walls. The entire line, including hard-to-find 115v wall-mounted models, utilizes Inverter Technology which allows systems to reach the desired temperature faster, maintain it more accurately, and reduce energy costs. SEER ratings up to 25.0.

LITERATURE DOWNLOADS

FRIEDRICH FLOATING AIR MINI SPLIT SALES BROCHURE

FRIEDRICH J SERIES MINI SPLIT SALES BROCHURE

FEATURES & BENEFITS

Cool only or heat pump systems from 9,000-33,100 BTU/h

SEER ratings up to 19

No expensive, messy and disruptive duct construction.

Unlike traditional window air conditioners, ductless split systems leave window views unobstructed. And, because these are permanent installations, there is nothing to remove or store over the winter.

Exceptional energy efficiency is the result of high tech Inverter Technology. Systems use only the power they need to reach the desired set point. Turn off units in unoccupied rooms to save even more.

Ductless systems keep the operating noise of the condenser unit outdoors

Auto-swing louvers and air sweep operation keep cool air circulating throughout the room.

Auto-shut flaps maintain a sleek appearance when the unit is not running.

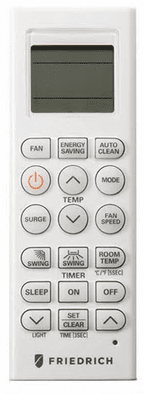

Wireless remote controls with 24-hour timer and sleep timer for independent operation of each indoor unit allows easy operation regardless of where you choose to place your indoor units.

Washable, reusable air filters.

Removable front grilles for easier maintenance.

Heat pump models automatically change over to heating when needed to maintain desired room temperature.

4 fan speeds plus auto-fan for extra comfort

4-speed fan with ultra-quiet Sleep Setting.

PRODUCT SPECIFICATIONS

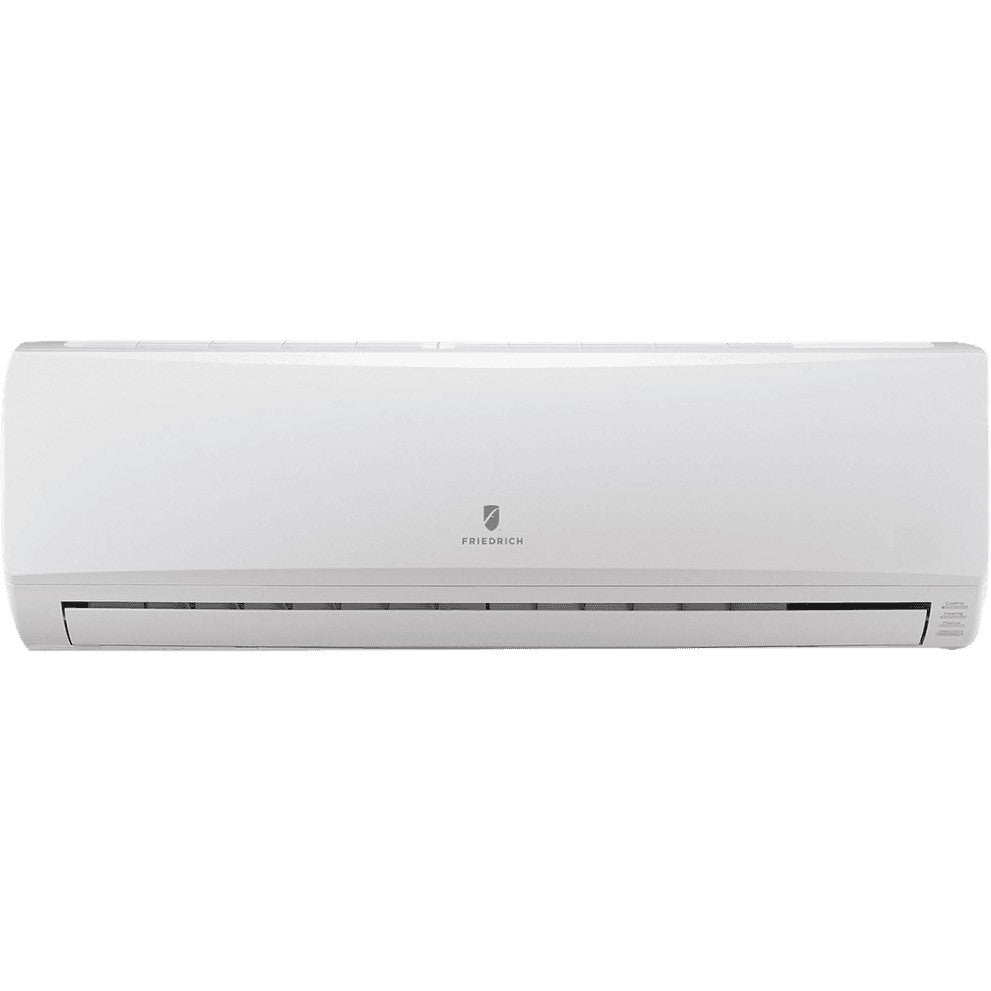

Indoor Model: FPHFW24A3B

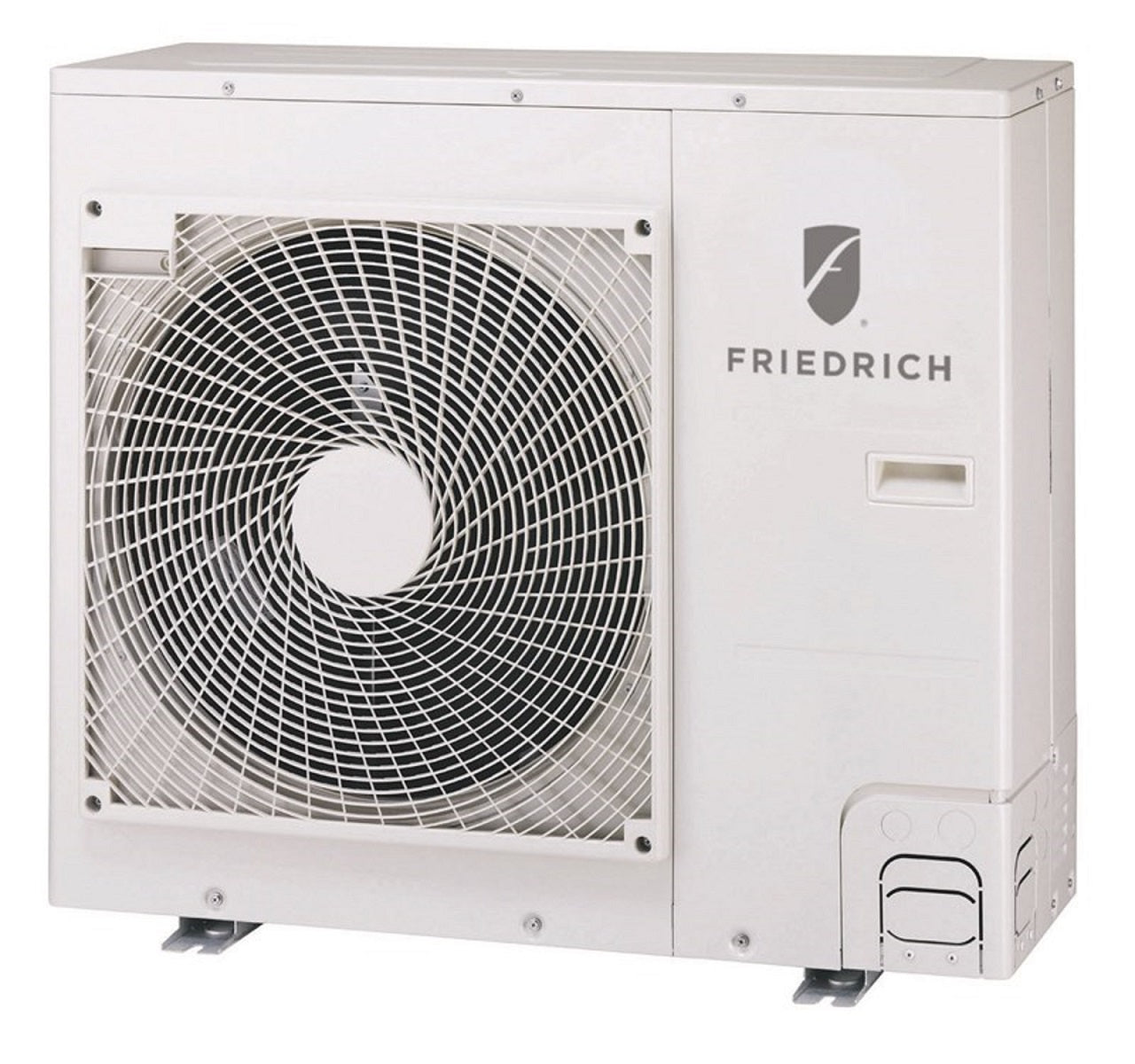

Outdoor Model: FPHSR24A3A

Cooling Capacity (BTU): 24,200

Cooling Capacity (Minimum/Maximum): 5,200-26,000

Sensible Heat Ratio: 0.76

Heating Capacity (47 Degrees Fahrenheit): 27,600

Heating Capacity (Minimum/Maximum): 4,100-36,200

Heating Capacity (17 degrees Fahrenheit): 17,800

HSPF: 10.0

SEER: 18.0

EER: 12.0

Moisture Removal: 5.3 pints/hour

Airflow CFM (Quiet/Low/Med/High): 380/450/560/650

Sound Rating dBA (Indoor): 32/36/41/47

Sound Rating dBA (Outdoor): 52

Operating Range Heat (F): 5-75

Operating Range Cool (F): 0-115

ELECTRICAL DATA

Power Source: 230/208-60-1

Minimum Ampacity: 21

Cooling Watts: 2310

Maximum TD Fuse/Breaker: 30

REFRIGERANT LINE DATA

Refrigerant: R410A

Compressor Type: Inverter

Connections: Flare

Liquid Line O.D.: 3/8"

Suction Line O.D.: 5/8"

Factory Pre-charge: 49'

Maximum Line Length: 98'

Maximum Height: 66'

DIMENSIONS & WEIGHTS

Indoor unit: 39 1/4"W x 12 5/8"H x 9"D

Indoor Weight: 31 lbs.

Indoor Shipping Weight: 40

Outdoor unit: 31 1/8"W x 22 3/4"H x 12 3/8"D

Outdoor weight: 97 lbs.

Outdoor Shipping Weight: 106 lbs.

LITERATURE DOWNLOADS

FRIEDRICH FLOATING AIR MINI SPLIT SALES BROCHURE

FRIEDRICH J SERIES MINI SPLIT SALES BROCHURE

MANUFACTURERS WARRANTY

FIVE YEAR WARRANTY - FRIEDRICH AIR CONDITIONING CO. (FRIEDRICH) warrants to the original end-user of this product that should it prove defective due to improper workmanship and/or material under normal use for a period of five years from the date of installation, FRIEDRICH will repair or replace, at its option, any defective part without charge for the part. Replacement parts are warranted for the remainder of the original warranty period. THIS WARRANTY DOES NOT INCLUDE LABORC)

SEVEN YEAR COMPRESSOR WARRANTY- During the seven year warranty period from the date of installation, should the compressor prove defective due to improper workmanship and/or material, FRIEDRICH will furnish a replacement compressor, at no charge, which is warranted for the remainder of the original warranty period. LABOR IS NOT INCLUDED FOR INSTALLING REPLACEMENT COMPRESSOR

COOL RUNNING AIR CONDITIONERS & MORE DUCT FREE PRODUCTS INTERNET SALES POLICY

Friedrich's expressed Duct Free Air Conditioning Warranty policy applies only to products sold and installed by qualified air conditioning contractors.

Because products sold via the internet cannot be assured of quality installation by a qualified air conditioning contractor, Friedrich's expressed warranty may not apply to internet sales.

Friedrich supports and recommends that a qualified air conditioning contractor properly size and install all Friedrich Duct-Free Air Conditioning products for optimal performance and long life.

Cool Running Hospitality Supply agrees and fully supports this policy. Friedrich and Cool Running accept no responsibility for improperly installed units.

• Orders for "In Stock" items weighing less than 80lbs, will be shipped via UPS or FedEx ground.
• Orders for "In Stock" items weighing more than 80lbs, will be shipped via LTL Freight carrier.
• Shipment of "In Stock" orders are usually completed within 2-3 business days of receiving your order and transit time will depend on your location's distance from shipper and method of shipping, but usually no more than 7 business days from shipment day.
