Amana PTCB10E PTAC Curtain Guard Kits, R410A Models, Serial Numbers 1001 and Higher, Packed 10

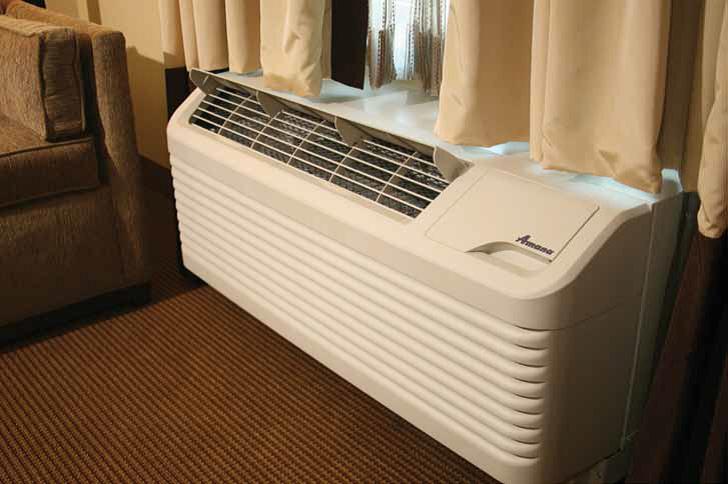

Amana PTCB10E PTAC Curtain Guard Kits, R410A Models, Serial Numbers 1001 and Higher, Packed 10 Avoid losing guest comfort, energy efficiency and customers with Amana brand Curtain Guards. Designed exclusively for Amana brand DigiSmart® R-22 and R-410A refrigerant PTAC units, the curtain guards install in a snap with no interference to in-room scheduled maintenance. It’s a simple solution to a costly problem. These matching guards are made from the same molded plastic as the front panel itself offering a seamless, finished look and not compromising any decor. The PTAC PTCB10E Kit is a curtain guard kit that redirects the airflow of the PTAC unit to provide added comfort. Each kit contains 10 guards. Before installing this kit, ensure that the correct kit has been ordered and received for your unit. This curtain guard has been designed to work in most curtain applications, but may NOT work in some applications.
IMPORTANT NOTE: This kit is designed for models with R-410A and should NEVER be used on R-22 models. Below are two ways to determine if your unit requires PTCB10E kit: 1. Check the underside of the guard next to the side tab for specific guard/unit compatibility statement. “Install on unit with serial number greater than 1001******”
2. If your unit’s model number contains an “E” as the 7th digit (i.e. PTH153E25RXXX), PTCB10E is the correct kit to use. ONLY models with the letter “E” for the 7th digit should use this kit. If your unit’s model number contains ANY OTHER LETTER for the 7th digit, DO NOT USE THIS KIT. The correct curtain guard kit for these units is PTCB10B.

Product Features
Improve Guest Comfort:
• Improved airflow
• Better cooling/heating

Save Energy:
• Reduce run time
• More efficient cooling/heating

Lower Operational Costs:
• Reduce on/off time
• Reduce component wear and tear
• Reduce maintenance

Product Specifications
• IMPORTANT NOTE: Do NOT remove curtain guard until front is removed from unit. Trying to uninstall the curtain guard before removing the cabinet front may cause the curtain guard to break.

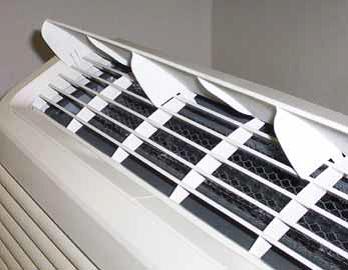

1. Position the curtain guard over the cabinet front (tab side down) so the left and right side tabs on the guard line up with the 2nd horizontal louver on each side of the cabinet front. Make sure the 2 middle tabs on the curtain guard are positioned over the 2nd and 4th vertical louvers on the cabinet front. Gently snap the left side of the curtain guard onto the 2nd horizontal louver of the cabinet front and then gently snap the tab on the right side of the cabinet front into place. DO NOT FORCE CURTAIN GUARD INTO PLACE.
2. After tabs are secure on the left and right side horizontal louvers, gently slide the two middle tabs along the bottom of the 2nd & 4th vertical louvers and snap in place. DO NOT FORCE CURTAIN GUARD INTO PLACE. When installed, the tabs should point towards the outside of the unit.
