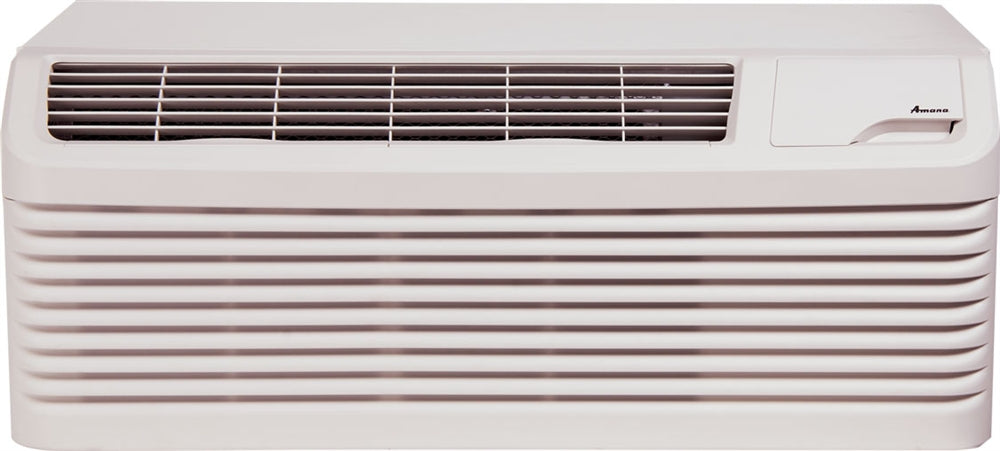

Amana PTH123G35AXXX PTAC Air Conditioner with Heat Pump, 12,000 BTU, 230/208 Volt, EER Rating 10.7, 20 Amp, DigiSmart Technology, Wall Sleeves and Grilles Needed for New Installations Sold Separately

SKU: PTH123G35AXXX
(0)
$1,399.00
-7% $1,499.00 $1,399.00
In stock
Available Accessories
View More View Less
Product badge 1
Product badge 2
Product badge 4
Product badge 5
Product badge 7
Product badge 8
Product badge 9
Product badge 10
Authorized Dealer

We are an Authorized Dealer for every manufacturer we represent, with over 15 years of experience, an A+ BBB rating, and products shipped factory-direct from the manufacturer to your door.

Free curbside shipping
100% secure payments

Ask an expert!

Email 866-538-1651
Amana PTH123G35AXXX PTAC Air Conditioner with Heat Pump, 12,000 BTU, 230/208 Volt, EER Rating 10.7, 20 Amp, DigiSmart Technology, Wall Sleeves and Grilles Needed for New Installations Sold Separately
From the beginning, every Amana® brand product has been made with the same core philosophy: to provide their customers with high-quality products that are reliable, meet their needs, and last longer than the rest. And they keep that philosophy firmly in mind as they build there industry-leading Amana® Packaged Terminal Air Conditioners (PTAC) and air-conditioning and heating products.
Whether you are in the hotel/hospitality industry, provide assisted living services or a home owner, Amana® PTAC units are designed to simplify your business or home with plain-and-simple product durability and advanced energy management features, all the while helping you to create the best environmental experience for your customer or your home. Amana's DigiSmart brings together their best PTAC ever with the best Energy Management Software and now integration with Property Management and Front-Desk Management Software. Reduce PTAC energy consumption by 35% OR MORE through the power of the in-unit Energy Management System, programmable temperature set-back and limits combined. Reduce PTAC maintenance cost through our automated maintenance notification system. Improved maintenance sustains energy efficiency (EER) and prolongs PTAC life, keeping equipment running greener and room guests more comfortable.

LITERATURE DOWNLOADS

  • 2017 AMANA PTAC SALES BROCHURE
  • AMANA PTAC MASTER CATALOG
  • AMANA PTAC DIGISMART ENERGY MANAGEMENT SALES BROCHURE
    •

    FEATURES & BENEFITS

    • Assembled in the USA for 30 years
    • Increased dehumidification capacity
    • 100% run-tested at our plant in Fayetteville, TN, for leaks

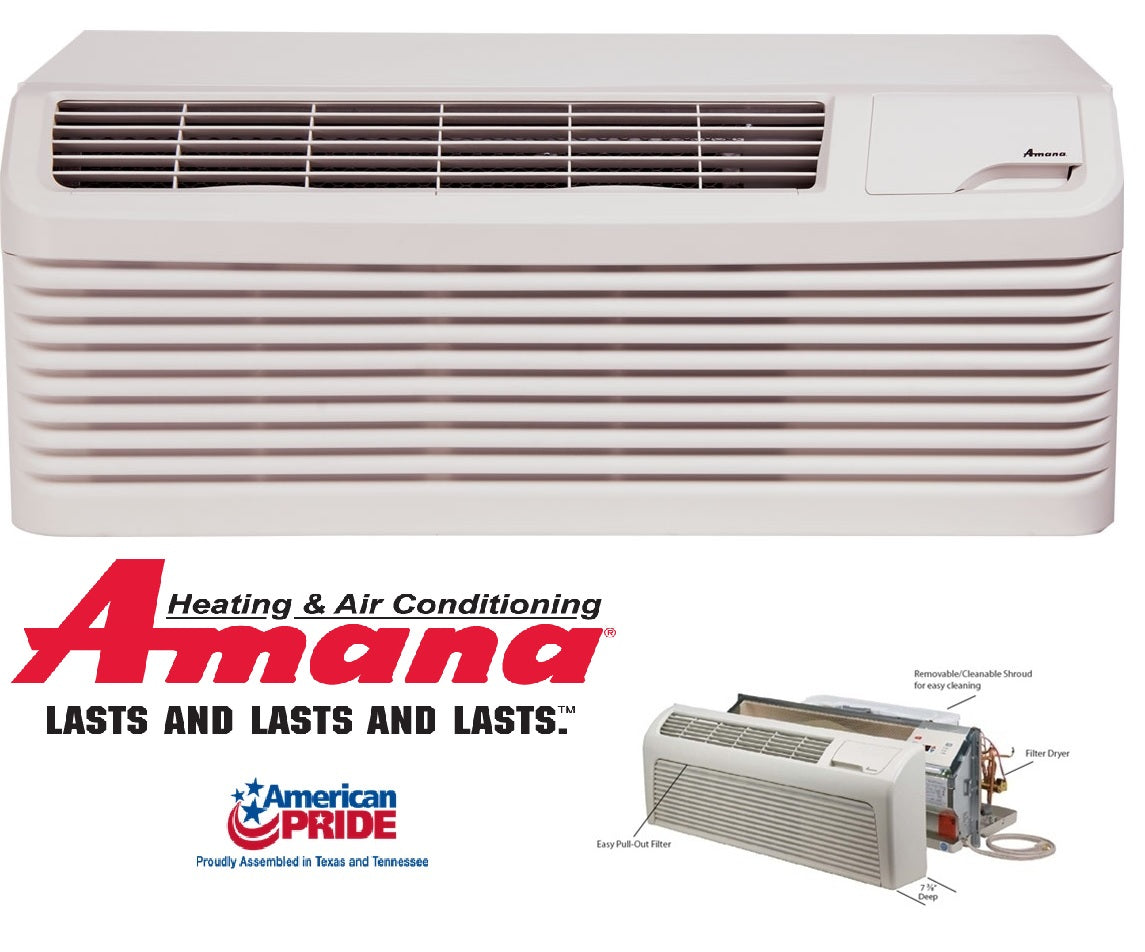

    • 7 5/8" unit front depth: one of the shallowest silhouettes in the industry today
    • Removable condenser shroud allows easy access to enable regular cleaning of coils
    • Easy pull-out filters that are washable and easy to maintain
    • Filter drier for sealed system refrigerant

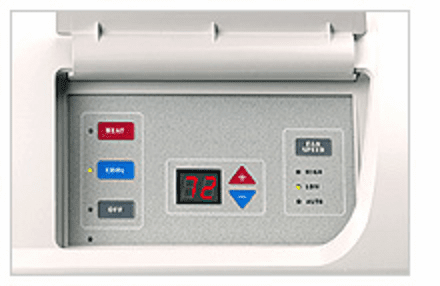

    • 7-Button touch pad provides complete control to guests for in-room comfort while maintaining energy efficiency
    • Condensate dispersion system removes condensate from indoor cooling operation and evaporates it into the atmosphere through the condenser
    • Digismart front desk control & energy management software
    • Room freeze protection is activated when the unit senses temperatures of 40 degrees or below
    • Versatile style that blends into any room's color scheme and decor
    • Easy to service with on-board led diagnostics
    • Digismart wireless remote thermostat is available
    • Remote temperature sensing for guest climate control
    • Extended heat pump heating down to as low as 24 degrees F outdoor ambient temperature
    • Zero floor clearance allows unit to be installed flush to a finished floor
    • 30-second fan-off delay
    • Compressor lock-in prevents compressor short-cycling
    • Constant fan mode
    • Hidden ventilation control
    • High-pressure switch

    PRODUCT SPECIFICATIONS

    • Cooling Capacity (BTUs): 12,000/12,000
    • Heating Capacity (BTUs): 12,000/9,900
    • Heat Pump Capacity (BTUs): 11,500/11,300
    • EER: 10.7/10.7
    • COP: 3.1/3.2
    • Refrigerant: R410A
    • Air Circulation (CFM H/M/L): 370
    • Fan Speeds (Cooling/Heating/Fan): N/A
    • De-humidification (pts/hour): 3.6
    • Indoor/Outdoor dB(A)*: 52.6

    ELECTRICAL DATA

    • Rated Voltage: 220/208-60-1
    • Electric Heater(kW): 3.5
    • Power Cord: NEMA 6-20P
    • Maximum Overcurrent Protection: 20 Amp
    • Minimum Circuit Ampacity: 19.5
    • Running Current Amps Cooling: 5.8
    • Running Current Amps Heating: 15.5/14.1
    • Running Current Amps Reverse Cyle Heating: 5.8/5.8
    • Power Input Watts Cooling: 1,120/1,120
    • Power Input Watts Heating: 3,570/2,935
    • Power Input Watts Reverse Cycle Heating: 1,085/1,035

    DIMENSIONS & WEIGHT

    • Unit Height: 16"
    • Unit Width: 42"
    • Unit Depth: 14 1/4"
    • Net Weight: 115 lbs.
    • Shipping Weight: 132

    LITERATURE DOWNLOADS

  • 2017 AMANA PTAC SALES BROCHURE
  • AMANA PTAC MASTER CATALOG
  • AMANA PTAC DIGISMART ENERGY MANAGEMENT SALES BROCHURE
    •

    MANUFACTURERS WARRANTY

    • First-Year Warranty: Parts & Labor on entire unit
    • Second through Fifth Year: Parts & Labor on certain sealed system components
    • Second through Fifth Year: on certain functional parts only
    • Complete warranty details available at www.amana-ptac.com.
