Amana

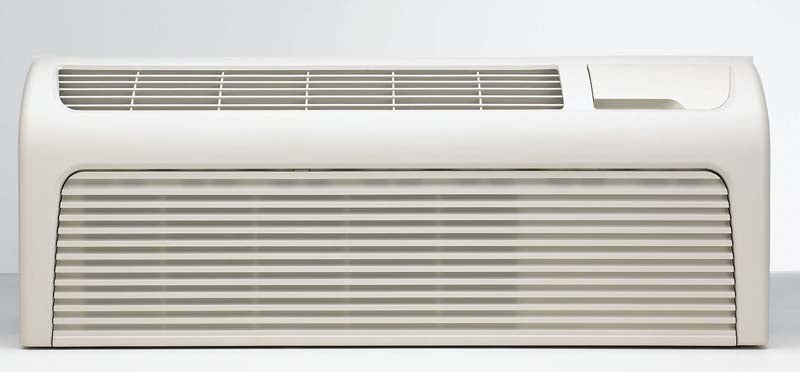

Amana PTH124G50CXXX PTAC Air Conditioner with Heat Pump, 12,000 BTU, 265 Volt, EER Rating 10.7, 30 Amp, Seacoast Protection Special Order (4-6 Weeks), Wall Sleeves and Grilles Needed for New Installations Sold Separately

SKU: PTH124G50CXXX
(0)
$1,309.00
-7% $1,409.00 $1,309.00
In stock
Available Accessories
View More View Less
Product badge 1
Product badge 2
Product badge 4
Product badge 5
Product badge 7
Product badge 8
Product badge 9
Product badge 10
Authorized Dealer

We are an Authorized Dealer for every manufacturer we represent, with over 15 years of experience, an A+ BBB rating, and products shipped factory-direct from the manufacturer to your door.

Free curbside shipping
100% secure payments

Ask an expert!

Email 866-538-1651
Amana PTH124G50CXXX PTAC Air Conditioner with Heat Pump, 12,000 BTU, 265 Volt, EER Rating 10.7, 30 Amp, Seacoast Protection Special Order (4-6 Weeks), Wall Sleeves and Grilles Needed for New Installations Sold Separately Amana packaged terminal heating and cooling units are energy efficient with EER up to 11.7 which allows for lower utility costs. Redesigned construction with 2 fans provides quiet operation while keeping your environment comfortable. The 7-button touch pad gives complete temperature control.
The units are 100% factory run tested which includes leak tests. Increased dehumidification capacity helps maintain moisture levels keeping you cooler. Filters easily pull out for washing, and removable condenser shroud permits easy access to clean coils which is essential to maintain efficiency, and aids to protect the compressor promoting long life to the unit. This unit is treated with a factory applied corrosion inhibitor and a unique painting process to extend unit life in coastal environments. These units have a filter drier for the sealed system refrigerant, and uses earth friendly R-410A.

FEATURES & BENEFITS

  • Assembled in the USA for 30 years
  • Increased dehumidification capacity
  • 100% run-tested at our plant in Fayetteville, TN, for leaks
  • 7 5/8" unit front depth: one of the shallowest silhouettes in the industry today
  • Removable condenser shroud allows easy access to enable regular cleaning of coils
  • Easy pull-out filters that are washable and easy to maintain
  • Filter drier for sealed system refrigerant
  • 7-Button touch pad provides complete control to guests for in-room comfort while maintaining energy efficiency
  • Condensate dispersion system removes condensate from indoor cooling operation and evaporates it into the atmosphere through the condenser
  • Digismart front desk control & energy management software
  • Room freeze protection is activated when the unit senses temperatures of 40 degrees or below
  • Versatile style that blends into any room's color scheme and decor
  • Easy to service with on-board led diagnostics
  • Digismart wireless remote thermostat is available
  • Remote temperature sensing for guest climate control
  • Extended heat pump heating down to as low as 24 degrees F outdoor ambient temperature
  • Zero floor clearance allows unit to be installed flush to a finished floor
  • 30-second fan-off delay
  • Compressor lock-in prevents compressor short-cycling
  • Constant fan mode
  • Hidden ventilation control
  • High-pressure switch

PRODUCT SPECIFICATIONS

  • Cooling Capacity (BTUs): 12,000
  • Heating Capacity (BTUs): 17,100
  • Heat Pump Capacity (BTUs): 11,400
  • EER: 10.7
  • COP: 3.1
  • Refrigerant: R410A
  • Air Circulation (CFM H/M/L): 360
  • Fan Speeds (Cooling/Heating/Fan): N/A
  • De-humidification (pts/hour): 3.6
  • Indoor/Outdoor dB(A)*: 52.6

ELECTRICAL DATA

  • Rated Voltage: 265-60-1
  • Electric Heater(kW): 5.0
  • Power Cord: NEMA 7-30P
  • Maximum Overcurrent Protection: 30 Amp
  • Minimum Circuit Ampacity: 23.9
  • Running Current Amps Cooling: 5.0
  • Running Current Amps Heating: 19.2
  • Running Current Amps Reverse Cyle Heating: 5.0
  • Power Input Watts Cooling: 1,120
  • Power Input Watts Heating: 5,070
  • Power Input Watts Reverse Cycle Heating: 1,080

DIMENSIONS & WEIGHT

  • Unit Height: 16"
  • Unit Width: 42"
  • Unit Depth: 14 1/4"
  • Net Weight: 115 lbs.
  • Shipping Weight: 132

LITERATURE DOWNLOADS

  • 2017 AMANA PTAC SALES BROCHURE
  • AMANA PTAC MASTER CATALOG
  • AMANA PTAC DIGISMART ENERGY MANAGEMENT SALES BROCHURE
    •

    MANUFACTURERS WARRANTY

    • First-Year Warranty: Parts & Labor on entire unit
    • Second through Fifth Year: Parts & Labor on certain sealed system components
    • Second through Fifth Year: on certain functional parts only
    • Complete warranty details available at www.amana-ptac.com.
    • Orders for "In Stock" items weighing less than 80lbs, will be shipped via UPS or FedEx ground.
    • Orders for "In Stock" items weighing more than 80lbs, will be shipped via LTL Freight carrier.
    • Shipment of "In Stock" orders are usually completed within 2-3 business days of receiving your order and transit time will depend on your location's distance from shipper and method of shipping, but usually no more than 7 business days from shipment day.
