Friedrich

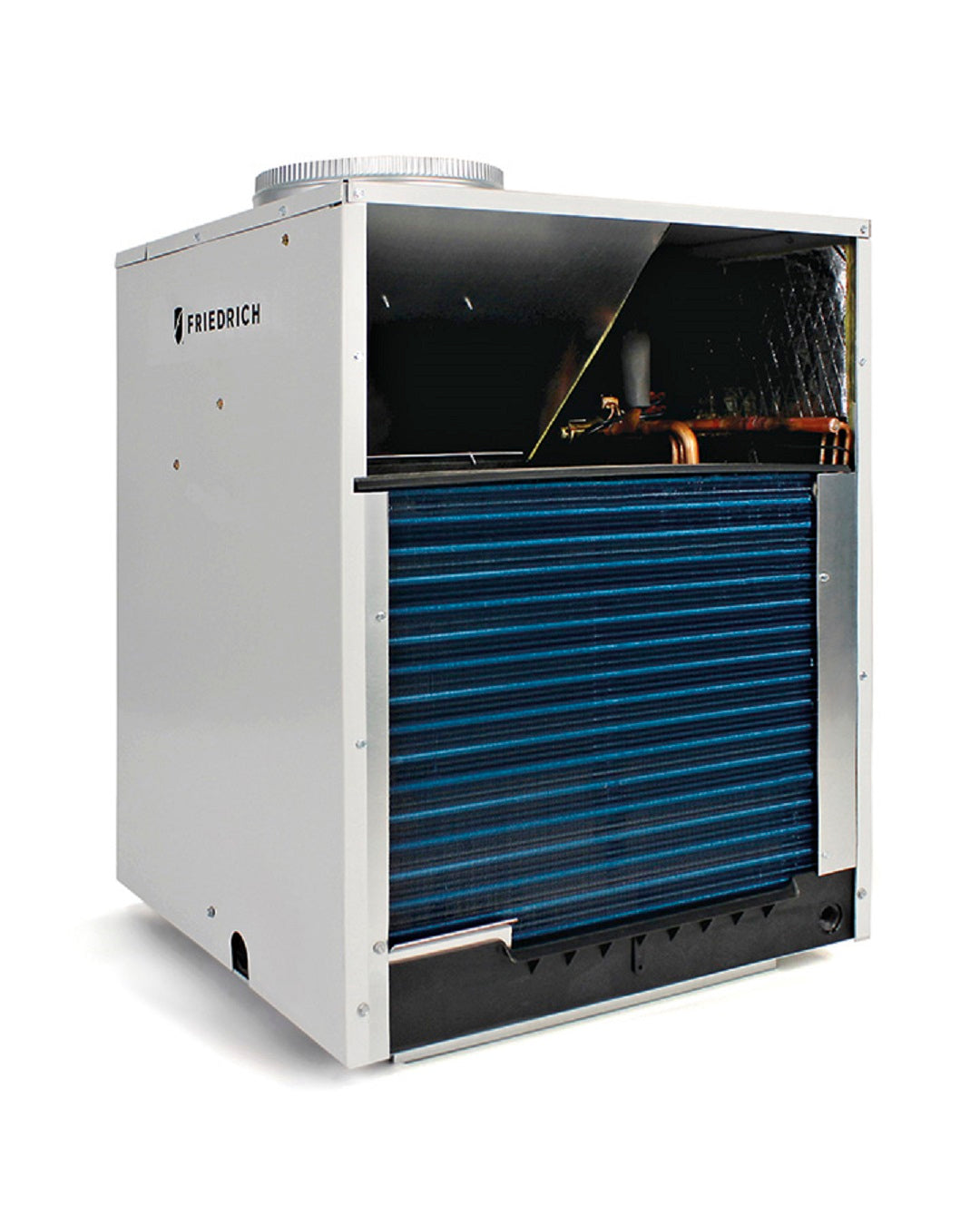

Friedrich VHA18R50RCQ Vertical PTAC Air Conditioner with Heat Pump, 16,800 BTU, 265 Volt, EER Rating of 9.1, 5.0 kW, Hard Wired Connection, Wall Plenums, Architectural Louvers, Return Air Access Panels Needed for New Installations Sold Separately, Usually

SKU: VHA18R50RCQ
(0)
$3,479.00
-15% $4,099.00 $3,479.00
In stock
Usually ships in 3-4 business days
Available Accessories
View More View Less
Product badge 1
Product badge 2
Product badge 4
Product badge 5
Product badge 8
Product badge 9
Product badge 10
Authorized Dealer

We are an Authorized Dealer for every manufacturer we represent, with over 15 years of experience, an A+ BBB rating, and products shipped factory-direct from the manufacturer to your door.

Free curbside shipping
100% secure payments

Ask an expert!

Email 866-538-1651

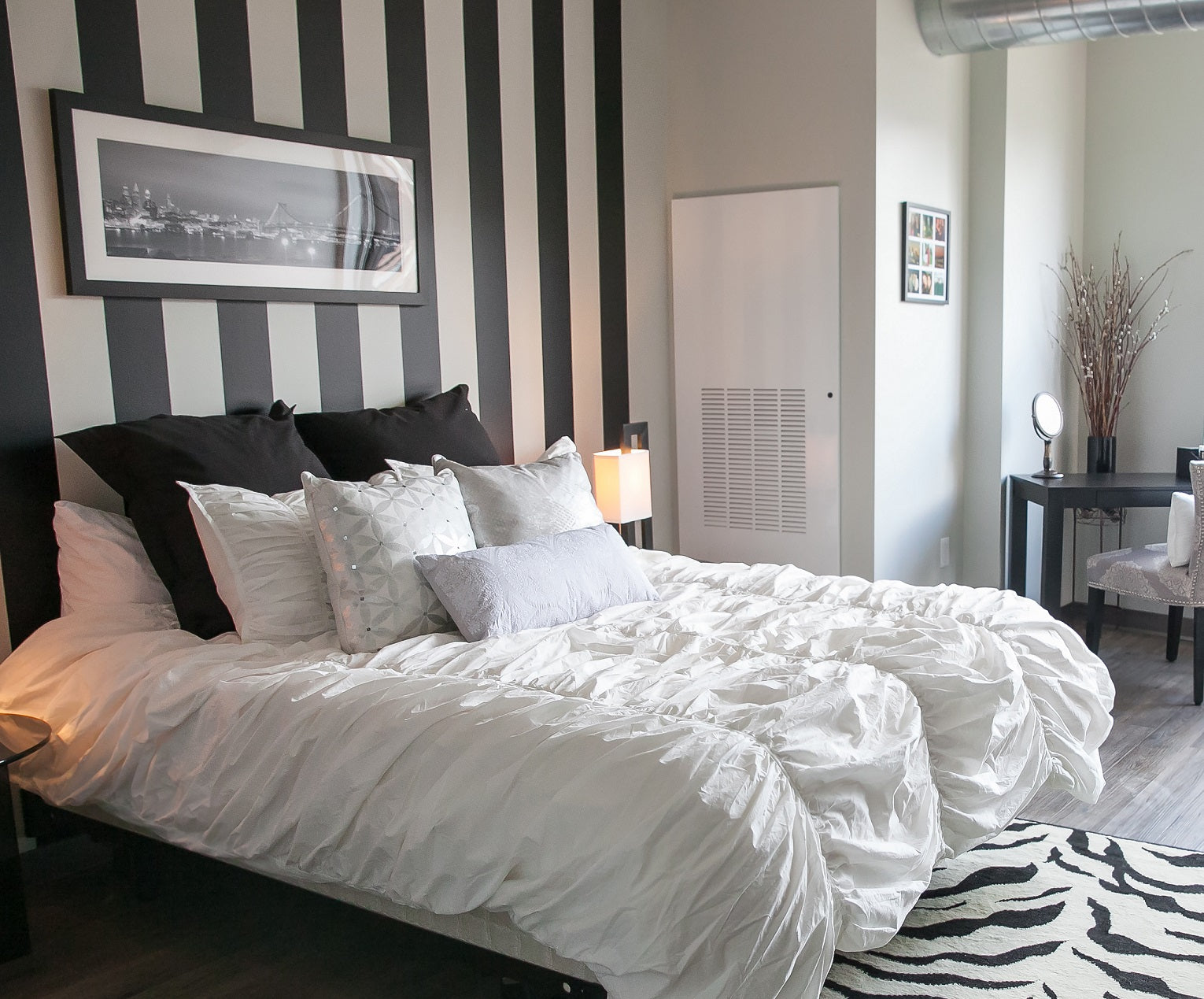

Friedrich VHA18R50RCQ Vertical PTAC Air Conditioner with Heat Pump, 18,600 BTU, 265 Volt, EER Rating of 11.0, 5.0 kW, Hard Wired Connection, Wall Plenums, Architectural Louvers, Return Air Access Panels Needed for New Installations Sold Separately, Usually Built to Order Please Note: Wall Plenums, Architectural Louvers and Return Air Access Panels are Needed for New Installations Sold Separately. Professional Installation is Required, Failure to Comply with Friedrich's Request will Void Warranty Ideal for extended stay properties, suites, assisted living facilities, student housing and commercial spaces. Give your property a homelike appearance. VERT-I-PAK fts neatly into a typical mechanical closet, so you can create indoor living spaces that are more versatile. Guests and tenants will enjoy a quieter and more visually dynamic living environment.

A simpler way to condition multiple rooms

  • A single VERT-I-PAK unit may be ducted for flexible zone cooling in multiple rooms.
  • Concealed installation.
  • Guests will appreciate the homelike feel of a guest room or suite with a hidden cooling system. And, everyone enjoys the benefits and comfort of individual in-room temperature control.
  • Quieter than exposed cooling options, Because the VERT-I-PAK installs in a typical mechanical closet, units are quieter than other in-room air conditioning options. Even quieter operating sound levels may be achieved by insulating the closet.
  • VERT-I-PAK is less expensive to install and maintain than multiple units for multiple rooms.
  • And energy efficient operation means lower operating costs.
  • Heat/cool larger areas and common spaces.
  • Available in capacities from 9,000-23,500 BTU's, VERT-I-PAK units can easily cool larger suites and common areas.
  • Installs as easily as a PTAC, All units are pre-wired, charged and piped, so only electrical hook up is needed to be up and running.
  • 100% run tested prior to shipment
  • Every unit is tested in every operating mode before it ships for optimal performance and reliability.

    LITERATURE DOWNLOADS

  • FRIEDRICH VERTIPAK VERTICAL PTAC SALES BROCHURE
    •

    FEATURES & BENEFITS

  • Condition multiple rooms, A single VERT-I-PAK unit may be ducted for flexible zone cooling in multiple rooms.
  • Concealed installation, Guests will appreciate the homelike feel of a guest room or suite with a hidden cooling system. And, everyone enjoys the benefits and comfort of individual in-room temperature control.
  • Quieter than exposed cooling options, Because the VERT-I-PAK installs in a typical mechanical closet, units are quieter than other in-room air conditioning options. Even quieter operating sound levels may be achieved by insulating the closet.
  • Added value, VERT-I-PAK is less expensive to install and maintain than multiple units for multiple rooms. And energy efficient operation means lower operating costs.
  • Heat and cool larger areas and common spaces, Available in capacities from 9,000 - 23,000 BTU/h, VERT-I-PAK units can easily cool larger suites and common areas.
  • Installs as easily as a PTAC, All units are pre-wired, charged and piped, so only electrical hook up is needed to be up and running.
  • 100% run tested prior to shipment, Every unit is tested in every operating mode before it ships for optimal performance and reliability.
  • Completely self-contained
  • Ultraquiet operation
  • Unique free-foating chassis
  • Eliminates the clutter of split systems and the need for multiple PTACs
  • No refrigerant lines running from foor to floor
  • Easy installation; does not require an HVAC technician
  • Standard safety power disconnect
  • Electronic control panel on unit for easy diagnostics and servicing
  • All units are shipped (on pallet) with return air filter
  • 24-volt remote thermostat ready
  • High/low fan speed can be selected at thermostat for improved comfort and sound (RT5 thermostat only)
  • 10" crimped and beaded duct-collar ready to attach flex duct
  • Easy-to-connect, right or left drain connection
  • Installs easily on an outside wall
  • Corrosion resistant interior
  • Easy-to-install front, left, or right hand into closet
  • Compact and lightweight, weighs as little as 125 lbs.
    •

    COOLING DATA

  • Cooling BTU: 18,600
  • Cooling Power (Watts): 1,845
  • EER: 11.0
  • Sensible Heat Ratio: 0.70
  • Heater Size: 5.0 kW

    HEAT PUMP DATA

  • Heating BTU: 18,000
  • COP @ 47 degrees: 3.0
  • Heating Power (Watts): 1,550
  • Heating Current (Amps): 6.5

    ELECTRIC HEAT DATA

  • Heater Watts: 5,000
  • Voltage: 265
  • Heating Current Amps: 20.1
  • Minimum Circuit Ampacity: 25.1
  • Branch/Circuit/Fuse MOP/MCOP: 30
  • Heater Size: 5.0 kW

    ELECTRICAL DATA

  • Voltage (1 Phase, 60 Hz): 265
  • Volt Range: 292-239
  • Cooling Current (Amps): 6.9
  • Amps L.R.: 42.0
  • Amps F.L.: 7.8
  • Indoor Motor (HP): 1/4
  • Indoor Motor (A): 1.2
  • Outdoor Motor (HP): NA
  • Outdoor Motor (A): NA

    INDOOR CFM LOW/HIGH

  • .10" ESP.10" ESP: 400/480
  • .15" ESP.10" ESP: 375/465
  • .20" ESP.10" ESP: 350/450
  • .25" ESP.10" ESP: 330/390
  • .30" ESP.10" ESP: 310/330
  • Vent CFM: 60

    DIMENSIONS & WEIGHTS

  • Dimensions (WxDxH): 23x23x32"
  • Net Weight: 165 lbs.
  • Shipping Weight: 176 lbs.
  • Test setting: HIGH
  • R410A Charge (oz.): 48.0

    LITERATURE DOWNLOADS

  • FRIEDRICH VERTIPAK VERTICAL PTAC SALES BROCHURE
    •

    MANUFACTURERS WARRANTY

  • FIRST YEAR ANY PART: If any part supplied by Friedrich fails because of a defect in workmanship or material within twelve months from date of original purchase, Friedrich will repair the product at no charge, provided room air conditioner is reasonably accessible for service
  • SECOND THROUGH FIFTH YEAR-SEALED REFRIGERANT SYSTEM: If the Sealed Refrigeration System (defined for this purpose as the compressor, condenser coil, evaporator coil, reversing valve, check valve, capillary, filter drier, and all interconnecting tubing) supplied by Friedrich in your Room Air Conditioner fails because of a defect in workmanship or material within sixty months from date of purchase, Friedrich will pay a labor allowance and parts necessary to repair the Sealed Refrigeration System
  • To contact Friedrich for Warranty and Service information call, 1-800-541-6645
    Please Note: Wall Plenums, Architectural Louvers and Return Air Access Panels are Needed for New Installations Sold Separately. Professional Installation is Required, Failure to Comply with Friedrich's Request will Void Warranty
    •
