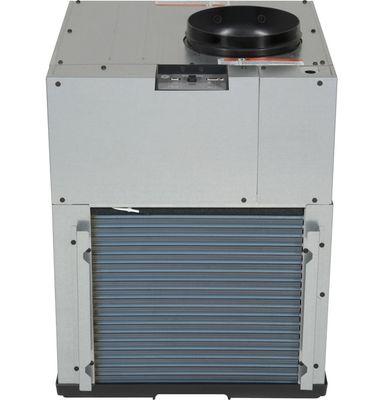

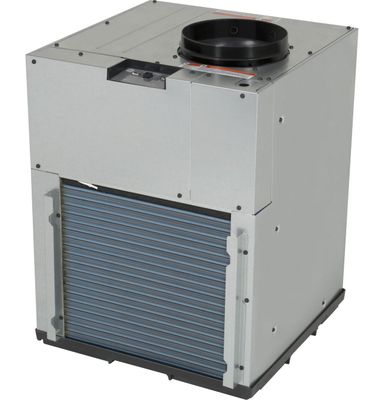

GE Zoneline AVES12DCXXA Cool/Electric Resistance Heat Vertical Air Conditioner 15 Amp 230/208 Volt, EER 11.8, 12,500 BTU, Corrosion Protection, Wall Plenum And Grille Needed for New Installations Sold Separately
GE has introduced the Vertical Zoneline. It is still a through-the-wall, packaged terminal unit, but instead of being 42" wide and installed in the middle of the room, it has a vertical configuration and is installed in a closet-like corner enclosure. The GE Zoneline Vertical Packaged Terminal Air Conditioner has a top air discharge that is ducted into a single room or multiple rooms. It is controlled by a wall-mounted thermostat similar to those found in most homes.
Because the VTAC is installed in a closet, it provides a more home-like appearance to the room as well as quieter operation. And guests prefer the wall thermostat because it provides more precise settings. Since the vertical Zoneline is not installed under a window in the middle of the room, curtains can hang all the way to the floor, and more versatile room designs are possible. Because the unit is ducted, it can serve a single room or multiple rooms. The GE Zoneline Vertical Packaged Terminal Air Conditioner is a great option to standard PTACs for cooling and heating a variety of rooms. It provides the costs benefit of packaged terminal units with the aesthetics, quieter operation and flexibility of a central system.
FEATURES AND BENEFITS
Rotary Compressor: Yes
Universal Heaters.
Solid State Thermostat.
Automatic Indoor Frost Control.
"Smart Fan" Fan Cycle Control.
Freeze Sentinel. Heat Sentinel (85F).
Auto Power Recovery.
Remote Control Disconnect Kit.
Weather Protected Electrical Components.
Resistance Heat.
Electric Resistance Heat Lockout.
Quick Heat Recovery.
DC Indoor and Outdoor Motors
Refrigerant Type: R-454B
Temperature Limiting: Yes
Sensible Heat Ratio: 76%
Fan Speed Selections: 3 Cooling
Heat Pump: Yes
Remote Thermostat: RAK148
Central Desk Control Compatibility: Yes
Manual Vent Control: Hidden
Corrosion Treated: YesPRODUCT CAPACITY
CFM Indoor Fan Medium: 376
Cooling BTUH (MAX): 12,000
Heating - Reverse Cycle - BTUH: 10,500
Cooling EER (BTUH/Watt): 11.8
Dehumidification (pts./hr.): 2.5
Programmable: No
Heat: Heat Pump
Dry Air 25: No
Corrosion Protection: Yes
Voltage: 230V - 208V
Product Type: Zoneline Vertical
ICR: No
Cooling BTUh 12,000
POWER RATINGS
Cooling - Watts: 955
Voltage (MIN): 208.0
Heating - Reverse Cycle - COP: 3.5
Voltage (MAX): 230.0
Heating - Electric - Input Watts: 870
Heating - Reverse Cycle - Heater Amps: 4.3
Cooling - Amperes; F.L. - Cooling: 4.5
WEIGHTS & DIMENSIONS
Overall Height: 31 7/8
Approximate Shipping Weight: 135
Overall Depth: 24 1/8
Overall Width: 23 5/8
Net Weight: 135MANUFACTURERS WARRANTY
Parts Warranty: Limited 2-year entire appliance.
Limited 5-year sealed refrigerating system
Labor Warranty: Limited 1-year entire appliance. Limited 5-year sealed refrigerating system
Warranty Notes: See written warranty for full details
