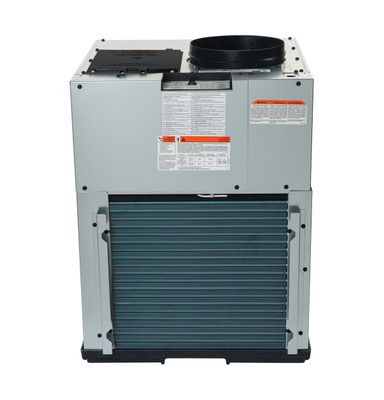

GE Zoneline AVVS12DCXWA Heat Pump With Makeup Air Single Package Vertical Air Conditioner 15,20 or 30 Amp 208/230 Volt, EER 12.0, 5,200-16,20000 BTU, Corrosion Protection, Wall Plenum, Cord Kit And Grille Needed for New Installations Sold Separately
GE has introduced the Vertical Zoneline. It is still a through-the-wall, packaged terminal unit, but instead of being 42" wide and installed in the middle of the room, it has a vertical configuration and is installed in a closet-like corner enclosure. The GE Zoneline Vertical Packaged Terminal Air Conditioner has a top air discharge that is ducted into a single room or multiple rooms. It is controlled by a wall-mounted thermostat similar to those found in most homes.
Because the VTAC is installed in a closet, it provides a more home-like appearance to the room as well as quieter operation. And guests prefer the wall thermostat because it provides more precise settings. Since the vertical Zoneline is not installed under a window in the middle of the room, curtains can hang all the way to the floor, and more versatile room designs are possible. Because the unit is ducted, it can serve a single room or multiple rooms. The GE Zoneline Vertical Packaged Terminal Air Conditioner is a great option to standard PTACs for cooling and heating a variety of rooms. It provides the costs benefit of packaged terminal units with the aesthetics, quieter operation and flexibility of a central system.
FEATURES AND BENEFITS
Rotary Compressor: Yes
Universal Heaters
Solid State Thermostat
Automatic Indoor Frost Control
"Smart Fan" Fan Cycle Control
Freeze Sentinel. Heat Sentinel (85F)
Auto Power Recovery
Remote Control Disconnect Kit
Weather Protected Electrical Components
Heat Pump with Resistance Heat Backup
Heat Pump with Supplemental Resistance Heat
Automatic Emergency Heat
Electric Resistance Heat Lockout
Heat Pump Defrost System
Quick Heat Recovery
DC Indoor and Outdoor Motors
Refrigerant Type: R-454B
Temperature Limiting: Yes
Sensible Heat Ratio: 76%
Fan Speed Selections: 3 Cooling
Heat Pump: Yes
Remote Thermostat: RAK148
Central Desk Control Compatibility: Yes
Manual Vent Control: Hidden
Corrosion Treated: YesPRODUCT CAPACITY
CFM Indoor Fan High: 465
CFM Indoor Fan Low: 380
Vent CFM (high fan at zero ESP): 60
Cooling BTUH (MAX): 16,200Nominal Heating BTUH:10,900
Heating Range BTUH: 4,500-13,000 @ 47F
Cooling EER (BTUH/Watt): 12
Dehumidification (pts./hr.): 2.8Nominal Cooling BTUH:12,000
Cooling BTUH (MIN): 5,200 @ 95F
Programmable: Yes
Heat: Heat Pump
Dry Air 25: No
Corrosion Protection: Yes
Voltage: 208/230V
Product Type: Zoneline Vertical
ICR: No
Cooling BTUh: 5,200 - 16,200
POWER RATINGS
Cooling - Watts:1050
Voltage (MIN): 208
Heating - Reverse Cycle - COP: 3.0/3.0
Voltage (MAX): 230
Heating - Electric - Input Watts: 3568
Heating - Reverse Cycle - Heater Amps: 13
Cooling - Amperes; F.L. - Cooling: 4.2
WEIGHTS & DIMENSIONS
Overall Height: 31 7/8
Approximate Shipping Weight:137
Overall Depth: 24 1/8
Overall Width: 23 5/8
Net Weight: 125MANUFACTURERS WARRANTY
Parts Warranty: Limited 2-year entire appliance Limited 5-year sealed refrigerating system
Labor Warranty: Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Warranty Notes: See written warranty for full details
